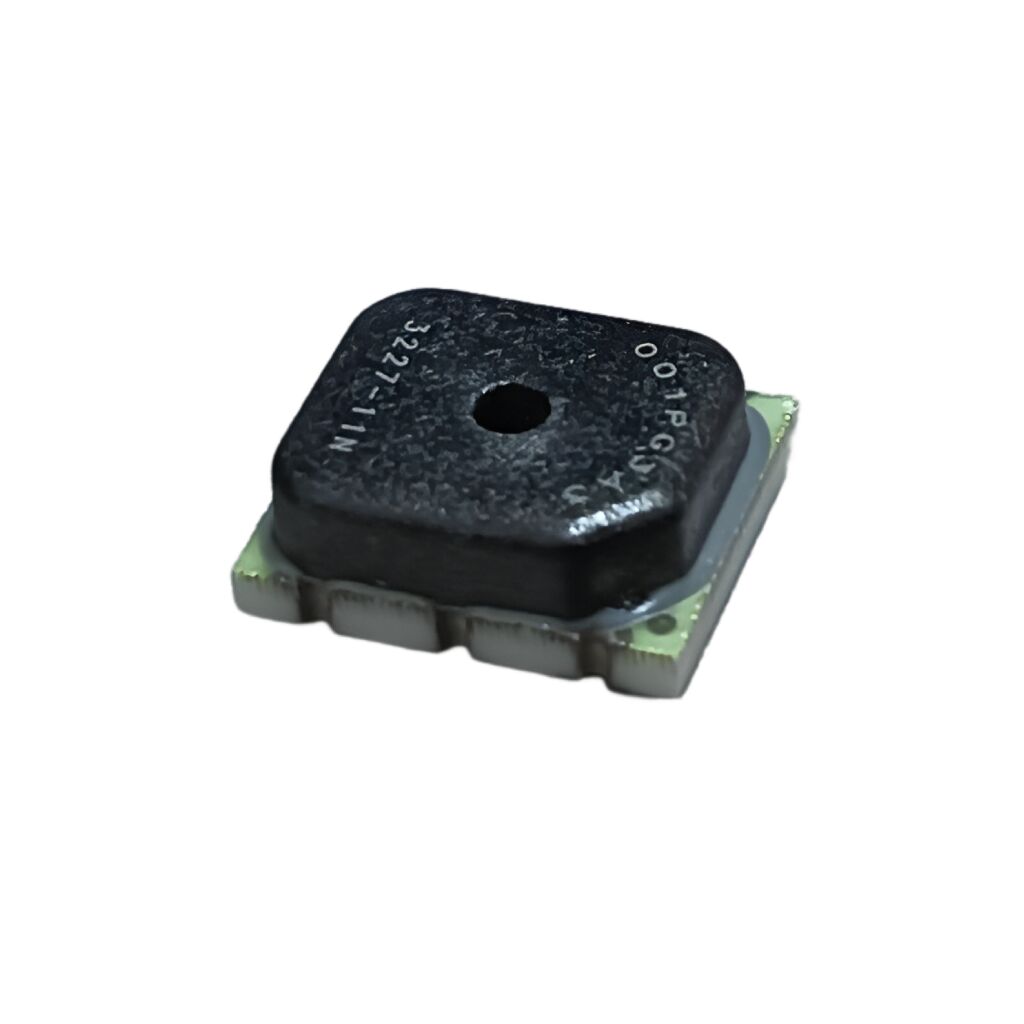

ABPLNNN001PG3A3 Honeywell Pressure Sensor

Available on order

550.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product  Description
Brand Honeywell
Model ABPLNNN001PG3A3
Product Series ABP Series Amplified Basic
Product Type Board Mount Pressure Sensor
Package Leadless SMT
Pressure Port No port
Product Option Dry gases only, no diagnostics
Pressure Range 0 psi to 1 ps
Output Type I2C, Address 0x38
Supply Voltage 3.3 Vdc
Operating temperature range -40 to 85 Deg C
Accuracy ±0.25%FSS BFSL
Vibration 15 g, 10 Hz to 2 kHz
Life 1 million pressure cycles minimum
Transfer Function 10% to 90% of Vsupply (analog), 214 counts (digital) no temperature output, no sleep mode

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

ABPLNNN001PG3A3 Honeywell Pressure Sensor are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell ABPLNNN001PG3A3 Pressure Sensors are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards.

• Dry gases option: The input port is  limited to non-corrosive, non-ionic media (e.g., dry air, gases) and should not be exposed to condensation. The gases are limited to media compatible with high temperature polyamide, silicone, alumina ceramic, silicon, gold, and glass.

• Liquid media option: Includes an additional silicone-based gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur. Since port P2 is designed for use with non corrosive liquids, this option is often suitable for wet-wet differential sensing.

FEATURES

  1. Total Error Band (see Figure 1): As low as ±1.5 %FSS
  2. Liquid media option: Compatible with a variety of liquid media
  3. Long-term stability: as low as ±0.2 %FSS
  4. Accuracy: ±0.25 %FSS BFSL
  5. Wide pressure range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH2O to 175 psi
  6. High burst pressures
  7. Wide operating temperature range of -40°C to 110°C [-40°F to 230°F]
  8. Calibrated over wide temperature range of -40°C to 110°C [-40°F to 230°F]
  9. 24-bit digital I2C or SPI-compatible output
  10. Ratiometric analog output
  11. IoT (Internet of Things) ready interface
  12. Ultra-low power consumption (as low as 0.01 mW typ. average power, 1 Hz measurement frequency)
  13. Meets IPC/JEDEC J-STD-020E Moisture Sensitivity Level 1
  14. REACH and RoHS compliant
  15. Temperature output available
  16. NSF-169, LFGB and BPA compliant materials
