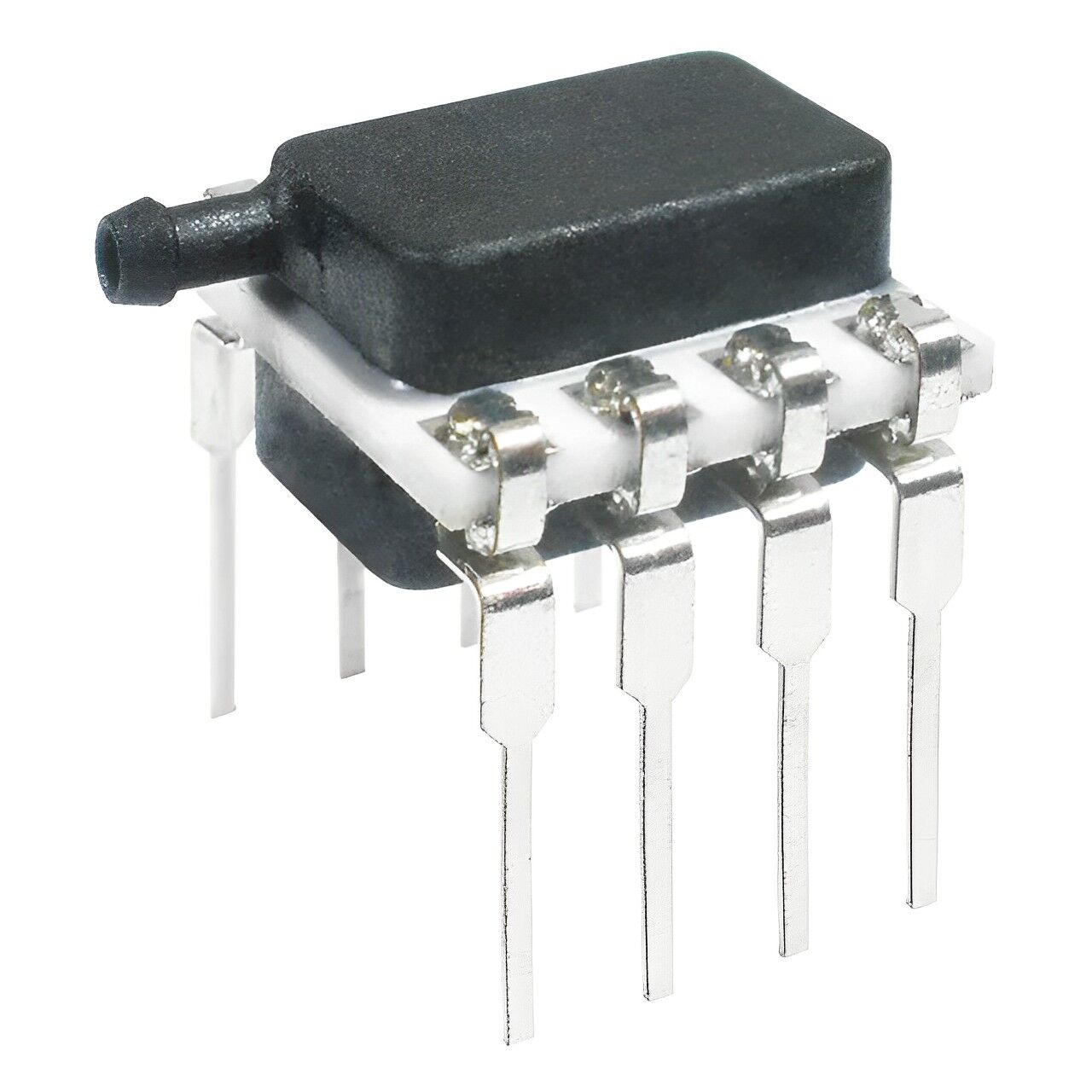

HSCDRNT015PDSA3 Honeywell Board Mount Pressure Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product  Description
Brand Honeywell
Model HSCDRNT015PDSA3
Product Series HSC Series High Accuracy, Compensated/Amplified
Package  DIP (Dual Inline Pin)
Pressure Port Single radial barbed port
Media Liquid media on Port 1, no diagnostics
Pressure Range ±15 psi
Output Type SPI
Transfer Function 10% to 90% of V supply (analog)
Supply Voltage 3.3 Vdc
Humidity Gases only: 0% to 95% RH, non-condensing
Liquid Media: 100% condensing or direct liquid media on Port 1
Vibration MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
Shock MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Life 1 million pressure cycles minimum
Solder reflow J-STD-020-D.1 Moisture Sensitivity Level 1
(unlimited shelf life when stored at <30 °C/85 % RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

The HSCDRNT015PDSA3 Honeywell Pressure Sensor , TruStability High Accuracy Silicon Ceramic (HSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range.

The Honeywell HSCDRNT015PDSA3 Pressure Sensor HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. The HSC Series is calibrated over the temperature range of 0 °C to 50 °C [32 °F to 122 °F].

The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are in reference to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between the two pressure ports. The TruStability pressure sensors are intended for use with non-corrosive, non-ionic gases, such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are design and manufactured according to ISO 9001 standards.

Features and Benefits

  1. Proprietary Honeywell technology
  2. PROTECTED BY MULTIPLE GLOBAL PATENTS
  3. Industry-leading long-term stability
  4. Most comprehensive, clear, and meaningful measurement Total Error Band (TEB)
  5. Industry-leading accuracy
  6. High burst pressures
  7. High working pressure ranges
  8. Industry-leading flexibility
  9. Industry-leading flexibility
  10. Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1 requirements
  11. Optional Internal diagnostic functions
  12. Energy efficient
  13. Output: ratiometric analog; I 2 C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
  14. Small size
  15. REACH and RoHS compliant
  16. Liquid media option

Potential Applications

MEDICAL

  1. Airflow monitors
  2.  Anesthesia machines
  3.  Blood analysis machines
  4.  Gas chromatography
  5.  Gas flow instrumentation
  6.  Kidney dialysis machines
  7.  Oxygen concentrators
  8.  Pneumatic controls
  9.  Respiratory machines
  10.  Sleep apnea equipment
  11.  Ventilators
  12.  Spirometers
  13.  Nebulizers
  14.  Hospital room air pressure

INDUSTRIAL

  1. Barometry
  2.  Flow calibrators
  3.  Gas chromatography
  4.  Gas flow instrumentation
  5.  HVAC
  6.  Life sciences
  7.  Pneumatic control
  8.  VAV (Variable Air Volume) control
  9.  Clogged HVAC filter detection
  10.  HVAC transmitters
  11.  Indoor air quality
