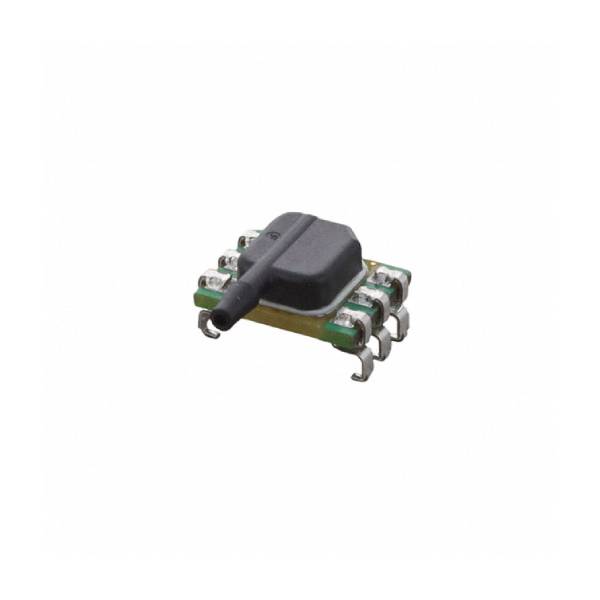

ABP2MRNT040KGAA3XX Honeywell Board Mount Pressure Sensor

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product  Description
Brand Honeywell
Model ABP2LNNG010BG2A3XX
Product Series ABP2 Amplified Basic
Package Leadless SMT
Pressure Port No port
Product Option Liquid media, fluorosilicone gel, no diagnostics
Pressure Range 10 bar
Output Type I2C, Address 0x28
Transfer Function 10% to 90% of Vsupply (analog), 2(24) counts (digital)
Supply Voltage 3.3 Vdc
Operating temperature range -40 to 110 °C
Accuracy ±0.25 %FSS BFSL
Vibration 15 g, 10 Hz to 2 kHz
Life 1 million full scale pressure cycles minimum
Shock 75 g, 6 ms duration

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

ABP2MRNT040KGAA3XX Honeywell Pressure Sensor  ABP2 Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell ABP2MRNT040KGAA3XX Pressure Sensor is calibrat and temperature compensate for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrate output value for pressure is updat at approximately 1 kHz for analog and 2 kHz for digital. All products are desig and manufacture according to ISO 9001 standards.

• Dry gases option: The input port is  limited to non-corrosive, non-ionic media (e.g., dry air, gases) and should not be expose to condensation. The gases are limit to media compatible with high temperature polyamide, silicone, alumina ceramic, silicon, gold, and glass.

• Liquid media option: Includes an additional silicone-based gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur. Since port P2 is designed for use with non corrosive liquids, this option is often suitable for wet-wet differential sensing.

FEATURES

  1. Total Error Band (see Figure 1): As low as ±1.5 %FSS
  2. Liquid media option: Compatible with a variety of liquid media
  3. Long-term stability: as low as ±0.2 %FSS
  4. Accuracy: ±0.25 %FSS BFSL
  5. Wide pressure range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH2O to 175 psi
  6. High burst pressures
  7. Wide operating temperature range of -40°C to 110°C [-40°F to 230°F]
  8. Calibrated over wide temperature range of -40°C to 110°C [-40°F to 230°F]
  9. 24-bit digital I2C or SPI-compatible output
  10. Ratiometric analog output
  11. IoT (Internet of Things) ready interface
  12. Ultra-low power consumption (as low as 0.01 mW typ. average power, 1 Hz measurement frequency)
  13. Meets IPC/JEDEC J-STD-020E Moisture Sensitivity Level 1
  14. REACH and RoHS compliant
  15. Temperature output available
  16. NSF-169, LFGB and BPA compliant materials
