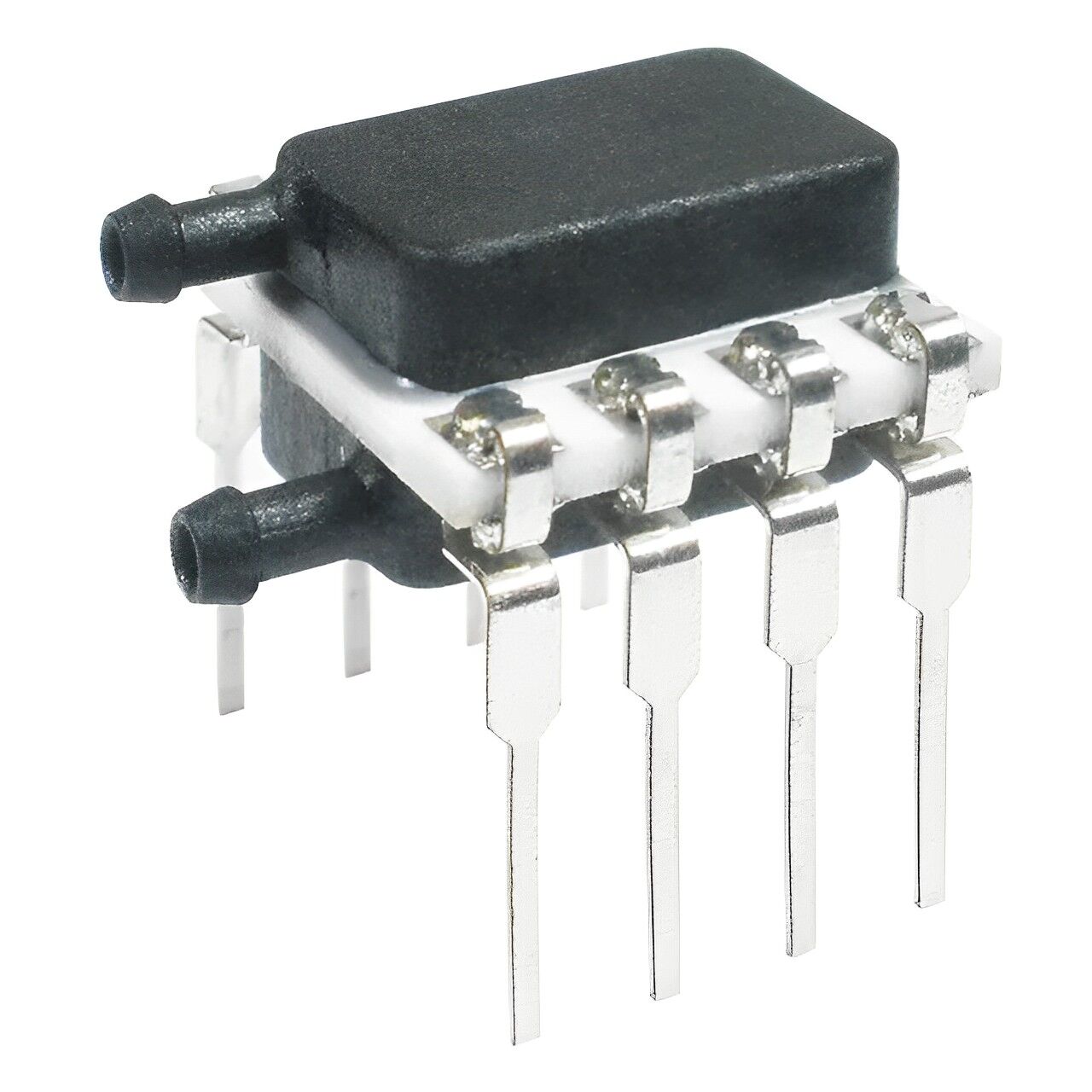

HSCDRRN004NDAA3 Honeywell Board Mount Pressure Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	HSCDRRN004NDAA3
Product Series	HSC Series High Accuracy, Compensated/Amplified
Package	DIP (Dual Inline Pin)
Pressure Port	Dual radial barbed ports, same side
Media	Dry gases only, diagnostics on
Pressure Range	±4 inH2O
Output Type	Analog
Transfer Function	10% to 90% of V supply (analog)
Supply Voltage	3.3 Vdc
Humidity	Gases only: 0% to 95% RH, non-condensing Liquid Media: 100% condensing or direct liquid media on Port 1
Vibration	MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
Shock	MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Life	1 million pressure cycles minimum
Solder reflow	J-STD-020-D.1 Moisture Sensitivity Level 1 (unlimited shelf life when stored at <30 °C/85 % RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The HSCDRRN004NDAA3 Honeywell Pressure Sensor, TruStability High Accuracy Silicon Ceramic (HSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range.

The Honeywell HSCDRRN004NDAA3 Pressure Sensor HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. The HSC Series is calibrated over the temperature range of 0 °C to 50 °C [32 °F to 122 °F].

The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are in reference to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between the two pressure ports. The TruStability pressure sensors are intended for use with non-corrosive, non-ionic gases, such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are design and manufactured according to ISO 9001 standards.

Features and Benefits

Proprietary Honeywell technology
PROTECTED BY MULTIPLE GLOBAL PATENTS
Industry-leading long-term stability
Most comprehensive, clear, and meaningful measurement Total Error Band (TEB)
Industry-leading accuracy
High burst pressures
High working pressure ranges
Industry-leading flexibility
Industry-leading flexibility
Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1 requirements
Optional Internal diagnostic functions
Energy efficient
Output: ratiometric analog; I 2 C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
Small size
REACH and RoHS compliant
Liquid media option
