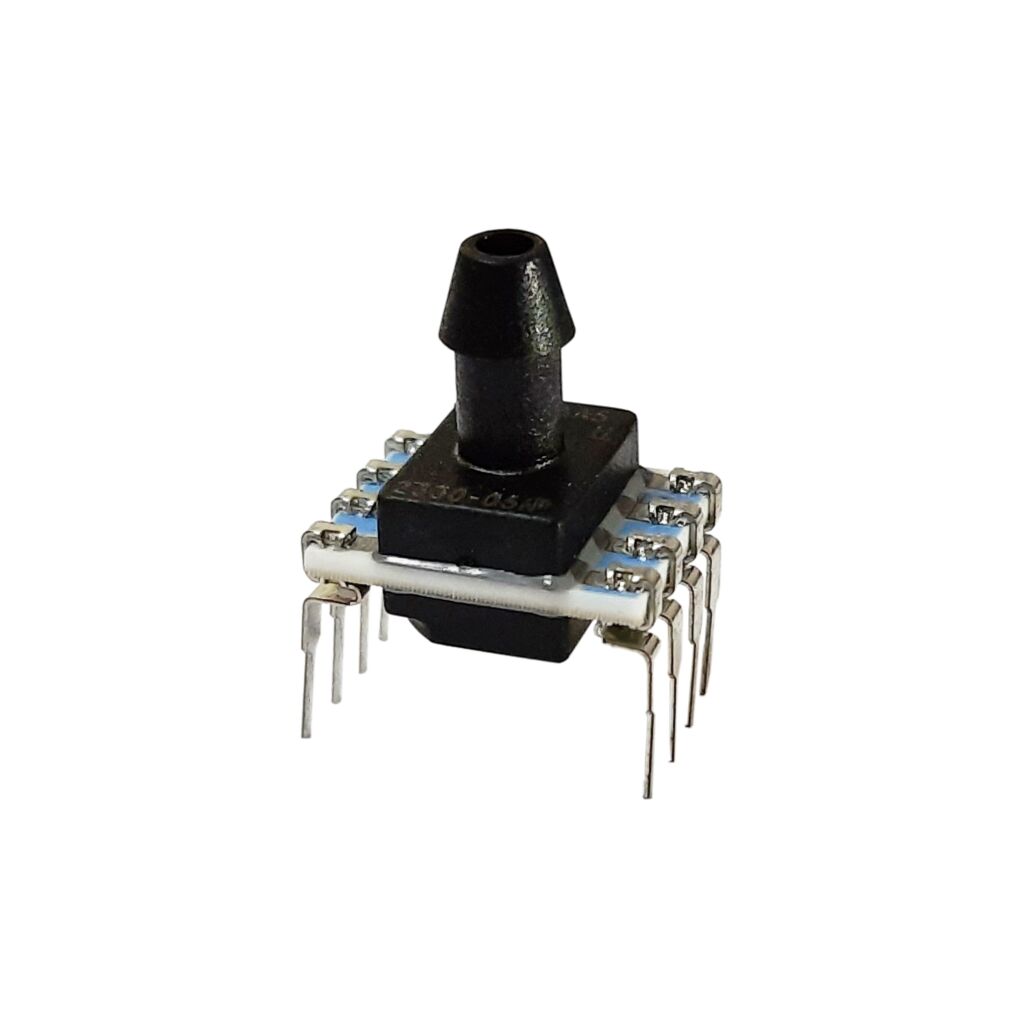

SSCDANT150PGAA5 Honeywell Board Mount Pressure Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	SSCDANT150PGAA5
Product Series	SSC Series Standard Accuracy, Compensated/Amplified
Package	DIP (Dual Inline Pin)
Pressure Port	Single axial barbed port
Media	Liquid media on Port 1, no diagnostics
Pressure Range	0 psi to 150 psi
Output Type	Analog
Transfer Function	10% to 90% of Vsupply (analog), 2(14) counts (digital)
Supply Voltage	5.0 Vdc
Humidity	Gases only: 0% to 95% RH, non-condensing Liquid Media: 100% condensing or direct liquid media on Port 1
Vibration	MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
Shock	MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Life	1 million pressure cycles minimum
Solder reflow	J-STD-020-D.1 Moisture Sensitivity Level 1 (unlimited shelf life when stored at <30 °C/85 % RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SSCDANT150PGAA5 Honeywell Pressure Sensor TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell SSCDANT150PGAA5 Pressure Sensor SSC Series is fully calibrate and temperature is compensate for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrate Circuit (ASIC).

Calibrated output values for pressure is update at approximately 1 kHz for analog and 2 kHz for digital. The SSC Series is calibrate over the temperature range of -20 °C to 85 °C [-4 °F to 185 °F]. The sensor is characterize for operation from a single power supply of 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure.

Gage versions are in reference to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between two pressure ports. The TruStability pressure sensors is intend for use with non-corrosive additionally non-ionic gases such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are design and manufactured according to ISO 9001 standards.
