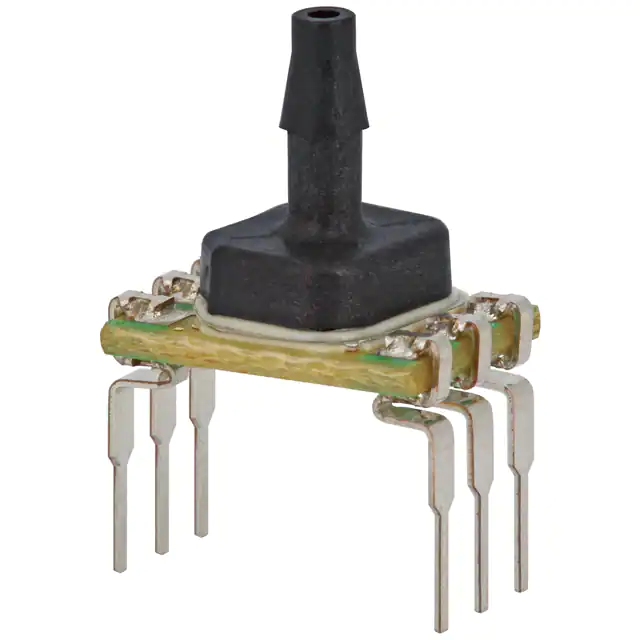

ABP2DANT150PGAA5XX Honeywell Board Mount Pressure Sensor

550.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product  Description
Brand Honeywell
Model ABP2DANT150PGAA5XX
Product Series ABP2 Amplified Basic
Package DIP (Dual Inline Pin)
Pressure Port Single axial barbed port
Product Option Liquid media, food-grade silicone gel, no diagnostics
Pressure Range 150 psi
Output Type Analog
Transfer Function 10% to 90% of Vsupply (analog), 224 counts (digital)
Supply Voltage 5.0 Vdc
Operating temperature range -40 to 110 °C
Accuracy ±0.25 %FSS BFSL
Vibration 15 g, 10 Hz to 2 kHz
Life 1 million full scale pressure cycles minimum
Shock 75 g, 6 ms duration

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

ABP2DANT150PGAA5XX Honeywell Pressure Sensor  ABP2 Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell ABP2DANT150PGAA5XX Pressure Sensor are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards.

• Dry gases option: The input port is  limited to non-corrosive, non-ionic media (e.g., dry air, gases) and should not be exposed to condensation. The gases are limited to media compatible with high temperature polyamide, silicone, alumina ceramic, silicon, gold, and glass.

• Liquid media option: Includes an additional silicone-based gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur. Since port P2 is designed for use with non corrosive liquids, this option is often suitable for wet-wet differential sensing.

FEATURES

  1. Total Error Band (see Figure 1): As low as ±1.5 %FSS
  2. Liquid media option: Compatible with a variety of liquid media
  3. Long-term stability: as low as ±0.2 %FSS
  4. Accuracy: ±0.25 %FSS BFSL
  5. Wide pressure range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH2O to 175 psi
  6. High burst pressures
  7. Wide operating temperature range of -40°C to 110°C [-40°F to 230°F]
  8. Calibrated over wide temperature range of -40°C to 110°C [-40°F to 230°F]
  9. 24-bit digital I2C or SPI-compatible output
  10. Ratiometric analog output
  11. IoT (Internet of Things) ready interface
  12. Ultra-low power consumption (as low as 0.01 mW typ. average power, 1 Hz measurement frequency)
  13. Meets IPC/JEDEC J-STD-020E Moisture Sensitivity Level 1
  14. REACH and RoHS compliant
  15. Temperature output available
  16. NSF-169, LFGB and BPA compliant materials
