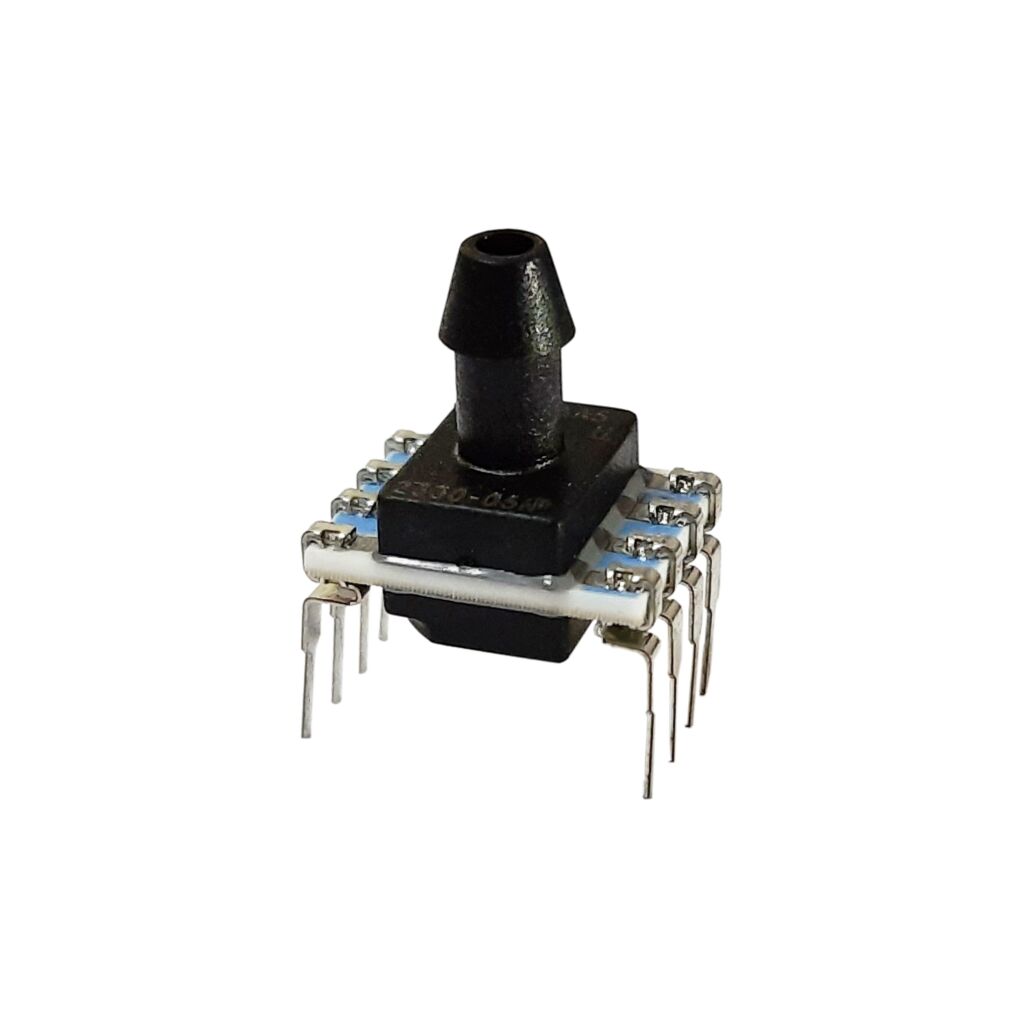

HSCDAND060PGSA3 Honeywell Board Mount Pressure Sensors

Available on order

2,200.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product  Description
Brand Honeywell
Model HSCDAND060PGSA3
Product Series HSC Series High Accuracy, Compensated/Amplified
Package  DIP (Dual Inline Pin)
Pressure Port Single axial barbed port
Media Dry gases only, diagnostics on
Pressure Range 0 psi to 60 psi
Output Type SPI
Transfer Function 10% to 90% of Vsupply (analog)
Supply Voltage 3.3 Vdc
Humidity Gases only: 0% to 95% RH, non-condensing
Liquid Media: 100% condensing or direct liquid media on Port 1
Vibration MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
Shock MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Life 1 million pressure cycles minimum
Solder reflow J-STD-020-D.1 Moisture Sensitivity Level 1
(unlimited shelf life when stored at <30 °C/85 % RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

The HSCDAND060PGSA3 Honeywell Pressure Sensors , TruStability High Accuracy Silicon Ceramic (HSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell HSCDAND060PGSA3 Pressure Sensors HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. The HSC Series is calibrated over the temperature range of 0 °C to 50 °C [32 °F to 122 °F]. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between the two pressure ports. The TruStability pressure sensors are intended for use with non-corrosive, non-ionic gases, such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are designed and manufactured according to ISO 9001 standards.
