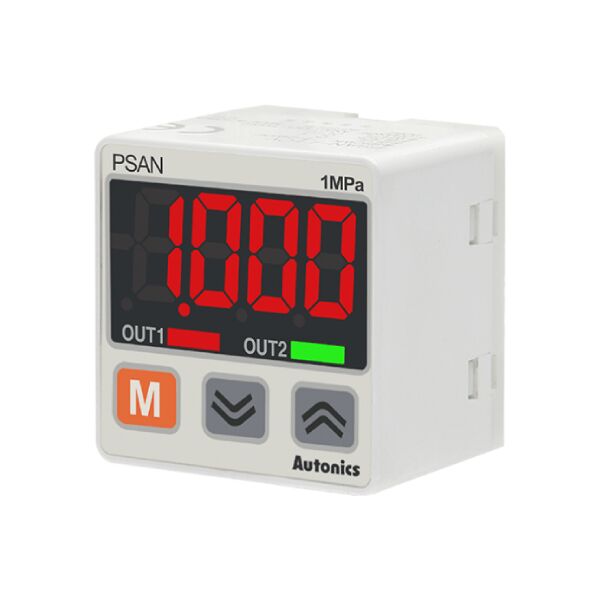

PSAN-1CPA-RC1/8 Autonics Pressure Transmitter

Available on order

5,360.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model Number PSAN-1CPA-RC1/8
Applicable fluid (Pneumatic type) Air, Non-corrosive gas
Pressure port direction Rear fitting
Pressure port Rc1/8
Connection type Connector type(connector type cable: 2m)
Pressure type Standard pressure
Rated pressure range 0 to 1,000kPa
Display pressure unit MPa, kPa, kgf/cm², bar, psi
Control output PNP open collector PNP open collector
Option input/output Current output(DC4-20mA)
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Voltage output type: Max. 50mA
Current output type: Max. 75mA
Protection structure IP40
Approval CE
Control output Hysteresis Min. display interval
Control output Repeat error ±0.2% F.S. ±Min. display interval
Control output Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
Environment Ambient temperature -10 to 50℃, storage: -20 to 60℃
Environment Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
Weight Approx. 165g(approx. 80g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics BEN5M-MFR Retroreflective Photo Sensor

Description

PSAN-1CPA-RC1/8 Autonics Pressure Transmitter

Features:

  • deal for a wide range of applications of gas, liquid, and oil.
    (Inappropriate to corrosion environment for SUS316L)
  • 1/2,000 high resolution for indication
  • Hold/Auto shift input function: Enables to output stably
    regardless of changing normal primary pressure and One unit
    performs two units functions (Only for models with Hold/Auto
    shift input type)
  • 2 independent outputs and N.O./N.C. output selectable
  • Forced-output mode embodied for easy operation test and
    monitoring
  • One-touch connector type for easy maintenance
  • Analog output
    (resolution: automatically changes as 1/1,000 or 1/2,000 by
    display unit, voltage: 1-5VDC, current: DC4-20mA)
  • Zero-point adjustment function, peak monitoring function, and
    chattering prevention function
