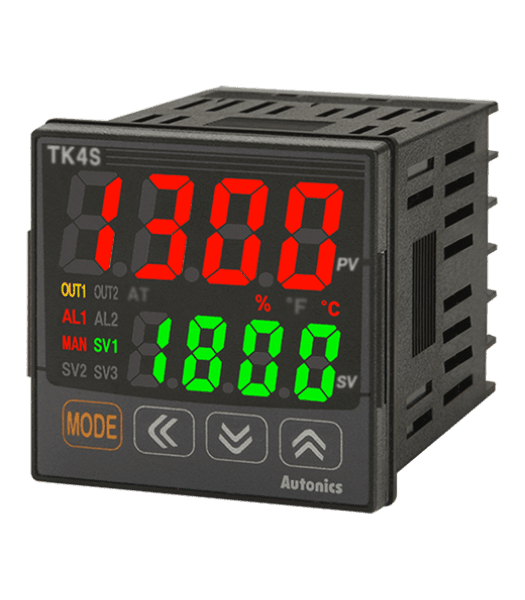

Name: TK4S-B4RN Autonics Temperature controller
SKU: 58903
Price: 7184.00 INR
Availability: OutOfStock

TK4S-B4RN Autonics Temperature controller

Available on order

₹7,184.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product

Description

Brand

Autonics

Model No.

TK4S-B4RN

Display

4-digit 7-segment LED

Control Method

ON/OFF control, P, PI, PD, PID control

Input Specification

Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
Analog: 0-100mV, 0-5V, 1-5V, 0-10V
0-20mA, 4-20mA

Sampling Frequency

50ms

Control Output 1

Current(DC0/4-20mA) or SSR drive

Option Input

CT, Digital(DI-1)

Option Output

Alarm 1/2

Power Supply

100-240VAC~ 50/60Hz

Protection Structure

IP65(front panel)

Display Accuracy

RTD	•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit

Thermocouple	•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit

Analog	•At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5℃% F.S. ±1-digit

CT input	±5% F.S. ±1-digit

Hysteresis

RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉)

variable Analog: 1 to 100-digit

Proportional Range

0.1 to 999.9℃/℉

Integral Time

0 to 9999 sec

Derivative Duration

0 to 9999 sec

Control Time

Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec

Manual Reset

0.0 to 100.0%

Ambient Temperature

-10 to 50℃, storage: -20 to 60℃

Ambient Humidity

35 to 85% RH, storage: 35 to 85% RH

Insulation Type

Double insulation or reinforced insulation ( dielectric strength between the measuring input part and the power part: 2kV)

Weight

Approx. 294g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The TK4S-B4RN Autonics Temperature controller, TK series high performance PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. Autonics TK4S-B4RN Temperature controller offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control of any required application.
