Name: BJ15M-TDT Autonics Photoelectric Sensor
SKU: 62240
Price: 4157.00 INR
Availability: InStock

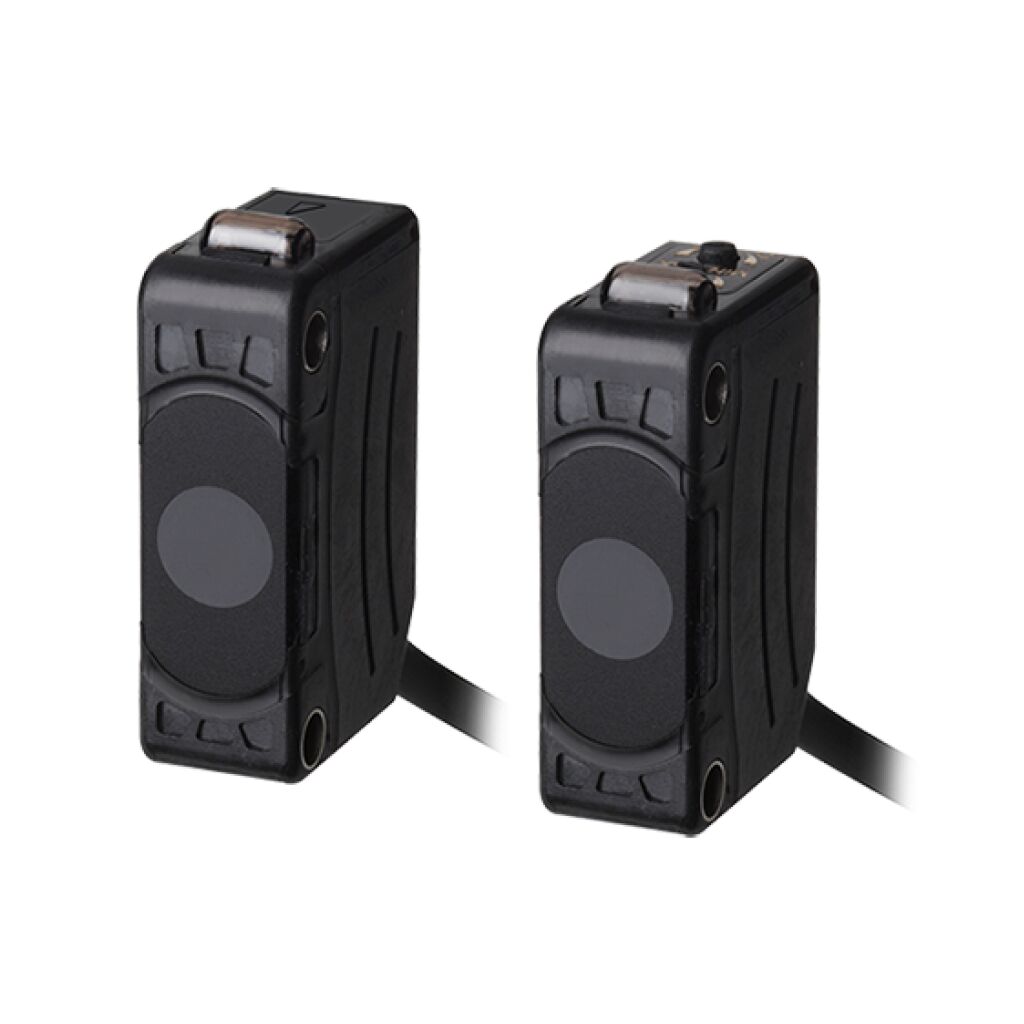

BJ15M-TDT Autonics Photoelectric Sensor

₹4,157.00 Excluding GST

Available in Stock

Product Details:

Product	Description
Brand	Autonics
Model Number	BJ15M-TDT
Sensing Type	Transmitted beam type
Sensing Distance	up to 15m
Sensing Target	Opaque materials of Min. Ø 12mm
Response time	Max. 1ms
Power Supply	12-24VAC ± 10% , Ripple P – P : Max.10%
Power Consumption	Emitter/Receiver : Max. 20mA
Light Source	Infrared LED (850nm)
Operation Mode	Light ON or Dark On mode selectable
Relay life cycle	Mechanically : Min 50,000,000, Electrically : Min 100,000
Indicator	Operation: Red, Stable: Green ( Emitter of power indicator for Transmitted beam : Red)
Connection	Outgoing Cable
Vibration	1.5mm or 300mm amplitude at frequency of 10∼55Hz in each of X, Y, Z directions for 2 hours
Shock	Mechanical:- 500m/s² X,Y,Z directions for 3 times
Ambient Temperature	-25 ∼ 55°C , Storage:- -25 to +70°C ( at non-freezing status )
Ambient Humidity	25 ∼ 85%RH , (at non-freezing status)
Material	Case : PC+ ABS, Lens :- PMMA, LED Cap : PC
Protection	IP65 (IEC Standard)
Cable	Ø 3.5mm, 2P, Length: 2m
Weight	Approx. 90g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BJ15M-TDT Autonics Photoelectric Sensor

Features:

Long sensing distance with high quality lens
Waterproof structure IP65 by rubber injection ( IEC Standard )
Compact Size
Detects up to 15m ( Transmitted beam type)
Long sensing distance : Diffuse reflective type 1m, Polarized reflective type 3m (MS-3S)
Light ON / Dark ON selectable
Built -in sensitivity adjuster ( accept for BJG30-DDT)
Mutual interference prevention function ( retroreflective type, Diffuse reflective type )
Stable detection for transparent object ( LCD, PDP, glass etc) by BJG30-DDT
