Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | TCN4S Series |
| Size | S: DIN W 48 × H 48 mm |
| Power supply | 24 VAC~ 50/60 Hz, 24-48 VDC or 100-240 VAC~ 50/60 Hz |
| Weight | Approx. 147g |
| Power consumption | AC power Max.: 5VA(100-240VAC 50/60Hz) AC/DC power Max.: 5VA(24VAC 50/60Hz), Max. 3W(24-48VDC) |
| Sampling period | 100 ms |
| Control Output | Relay-250 VAC~ 3A, 30 VDC3A, 1a
SSR- 12 VDC±2 V, ≤ 20 mA |
| Alarm output | AL1, AL2 Relay output: 250VAC 1A 1a |
| Display type | 7 Segment (red, green), LED type |
| Control type | ON/OFF control, P, PI, PD, PID control |
| Hysteresis | 1 to 100 (0.1 to 50.0) ℃/℉ |
| Proportional band (P) |
0.1 to 999.9 ℃/℉ |
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
| Ambient temperature | -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
| Memory retention | ≈ 10 years (non-volatile semiconductor memory type) |
| Insulation resistance | ≥ 100 MΩ (500 VDC megger |
| Mechanical | ≥ 5,000,000 operations |
| Electrical | OUT1/2: ≥ 200,000 operations (load resistance: 250 VAC~ 3 A ) AL1/2: ≥ 300,000 operations (load resistance: 250 VAC~ 1 A ) |
| Dielectric strength | Between input terminal and power terminal: 1,000 VAC~ or 2,000 VAC~ 50/60 Hz for 1 min |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Insulation resistance | ≥ 100 MΩ (500 VDC megger) |
| Noise immunity | ±2 kV square shaped noise (pulse width: 1 ㎲) by noise simulator R-phase, S-phase |
| Memory retention | ≈ 10 years (non-volatile semiconductor memory type) |
| Allowable voltage range | 90 to 110% of rated voltage |
| Digit | 9999(4digit) |
| Setting type | Dual display type, set by touch switch |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

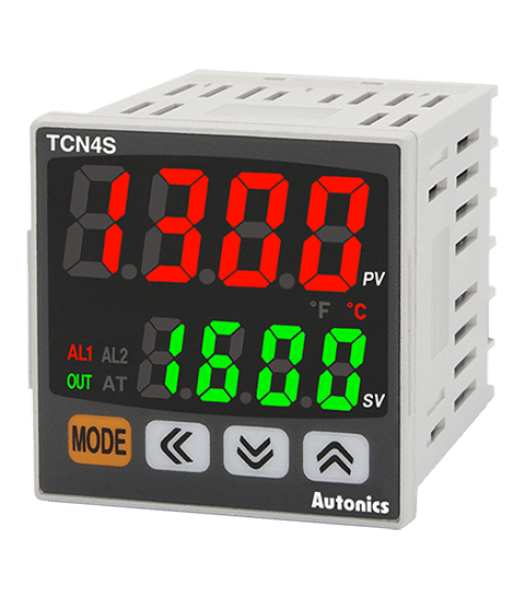

TCN4S Series Autonics Temperature Controller
Features
● Realizes ideal temp. controlling with newly developed PID control algorithm and 100ms high speed sampling
● Built-in relay output or SSR output selectable : Enables to phase control and cycle control with SSR drive output(SSRP function)
● Dramatically increased visibility using wide display part
● Mounting space saving with compact design : Approx. 38% reduced size compared with existing model(depth-based)
