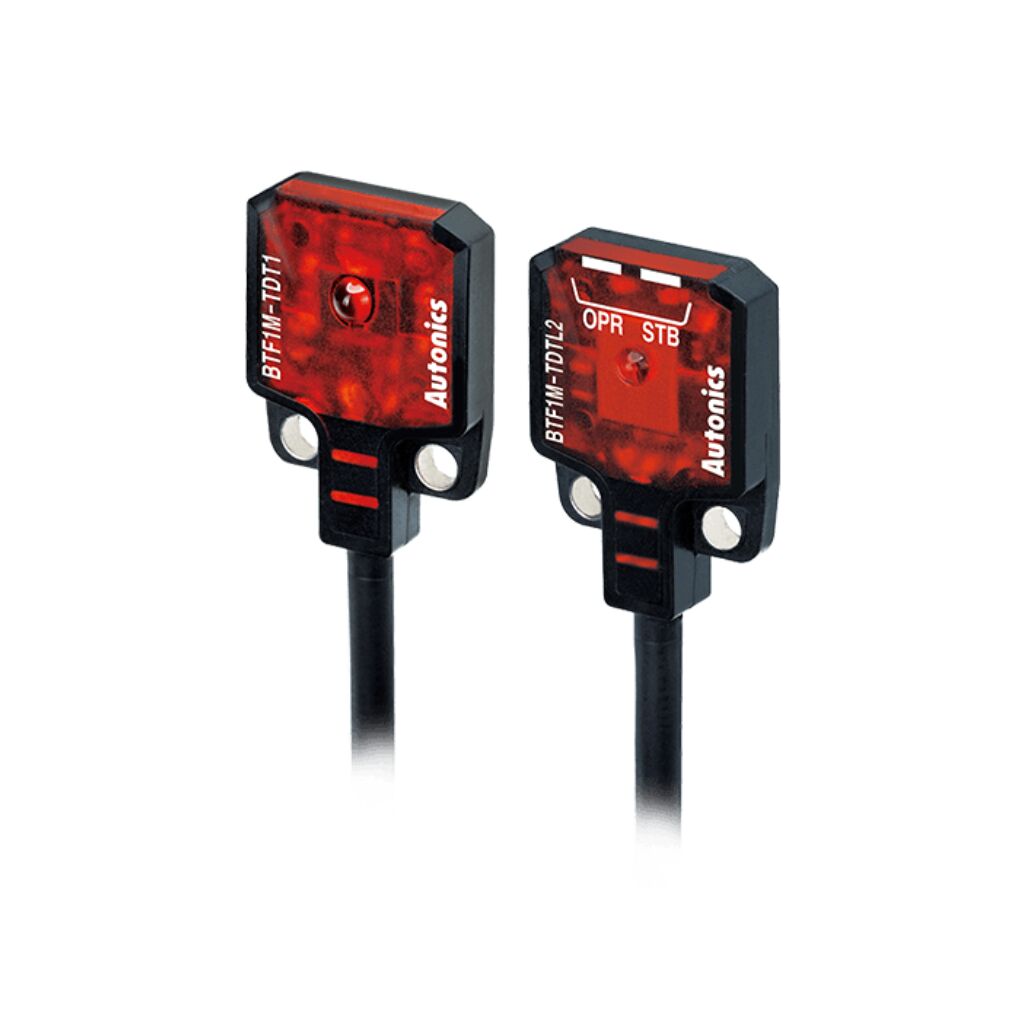

BTF1M-TDTL Autonics Photoelectric Sensor

Available on order

Product Details:

Product	Description
Brand	Autonics
Model Number	BTF1M-TDTL
Sensing Type	Through beam type
Sensing Distance	1m
Sensing Target	Opaque materials of Max. Ø 2mm Min. sensing target : Opaque materials of . Ø 2mm
Response time	Max.1ms
Power Supply	12-24VDC ± 10% , Ripple P – P : Max.10%
Current Consumption	Emitter/Receiver : Max. 20mA
Light Source	Red LED (650nm)
Operation Mode	Light ON or Dark On mode selectable
Relay life cycle	Mechanically : Min 50,000,000, Electrically : Min 100,000
Indicator	Operation: Red, Stable: Green
Connection	Outgoing Cable
Vibration	1.5mm or 300m/s² amplitude at frequency of 10∼55Hz(for 1 min) in each of X, Y, Z directions for 2 hours
Shock	Mechanical:- 500m/s² (Approx.50G) in each of X,Y,Z directions for 3 times
Ambient Temperature	-25 to 55°C , Storage: -40 to 70°C
Ambient Humidity	35 to 85%RH , storage : 35 to 85%RH
Material	Case : PBT, Sensing part: PMMA
Protection	IP67(IEC Standard)
Cable	Ø 2.5mm, 3-wire, Length :2m, (Emitter of through beam type : Ø 2.5mm, 2-wire, Length :2m) (AWG28, Core diameter: 0.08mm, Number of cores: 19, Insulator out diameter: Ø 0.09)
Weight	Approx. 40g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BTF1M-TDTL Autonics Photoelectric Sensor

Ultra-slim and amplifier built-in type

Features:

Realization of ultra-slim size by adopting one-chip Photo IC
Size: Through beam (W13×H19×L3.7mm), Diffuse reflective, BGS reflective(W13×H24×L3.7mm)
Adopt BGS method superior than convergent reflective to minimize error by background color, or material of sensing object for stable sensing
Visible light source to the check the position of sensing spot and superior to small sensing target with narrow sensing width
Built-in Reverse polarity, Output shorts, overcurrent protection circuit
Protection Structure IP67 (IEC Standard)
