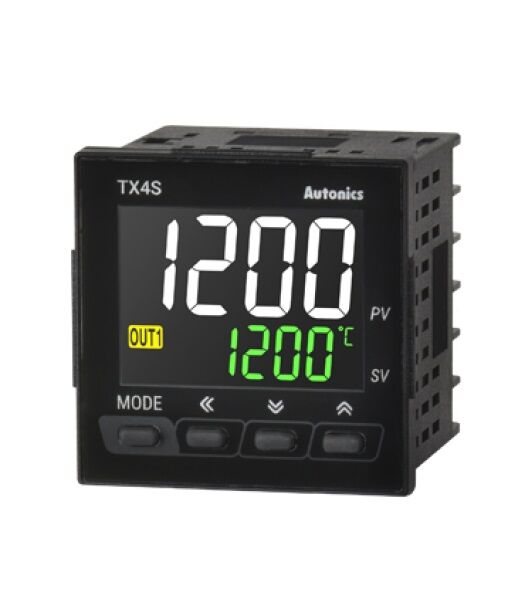

TX4S-14R Autonics Temperature Controller

Available on order

3,960.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. TX4S-14R
Display method 4-digit 11-segment LCD
Control method ON/OFF control, P, PI, PD, PID control
Input specification Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
RTD: DPt100?, Cu50℃
Sampling cycle 50ms
Control output Relay (250VAC~ 3A, 30VDC 3A)
Option output Alarm 1
Power supply 100-240VAC~ 50/60Hz
Protection structure IP50(front panel)
Approval CE
Display accuracy RTD •At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit
•Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy Thermocouple •At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit
•Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Hysteresis(adjustable sensitivity) 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band 0.1 to 999.9?/?
Integral time 0 to 9999 sec
Derivative time 0 to 9999 sec
Control period 0.5 to 120.0 sec
Manual reset 0.0 to 100.0%
Environment Ambient temperature -10 to 50℃, storage: -20 to 60℃
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Insulation type Double insulation (mark: , dielectric strength between primary circuit and secondary circuit: 3kV)
Weight Approx. 146.1g(approx. 86.7g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

TX4S-14R Autonics Temperature Controller

Features

  • Super high-speed sampling with 50ms
  • Improved visibility with LCD display
  • Communication function supported: RS485 (Modbus RTU)
  • Convenient parameter setting (RS485 communication)
    : Free download the comprehensive device management program
    (DAQMaster)
  • SSR drive output / Current output selectable
  • SSRP output (standard/phase/cycle control selectable
  • Mounting space saving with compact design
    : downsized by approx. 30% in depth compared with same size of
    other Series (panel back length: 60mm)
