PR18-5DP Autonics Proximity Sensor

$19.15 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. PR18-5DP
5 mm
Current Consumption 10 mA (Max)
DC-3 Wire Type
Industrial
Hysteresis 10%
Standard Sensing Target 18 x 18 x 1 mm (Iron)
Power Supply 12-24 VDC
Leakage Current 10mA (Max)
Response Frequency 500 Hz
Residual Voltage 1.5 V (Max)
Control Output 200 mA
Insulation Resistance 50 M Ω (Min)
Dielectric Strength 1500 VAC 50/60 Hz for 1 min
Vibration 1mm amplitude
Shock 500 m/s²
Indicator Operation Indicator (Red Led)
Ambient Temperature -25 to +70ºC
Storage Temperature -30 to +80ºC
Ambient Humidity 35 to 95% Rh
Protection Circuit Reverse power polarity, surge, overcurrent protection
Setting Distance 0~3.5mm
Protection IP67 (IEC standard)
Weight 122g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

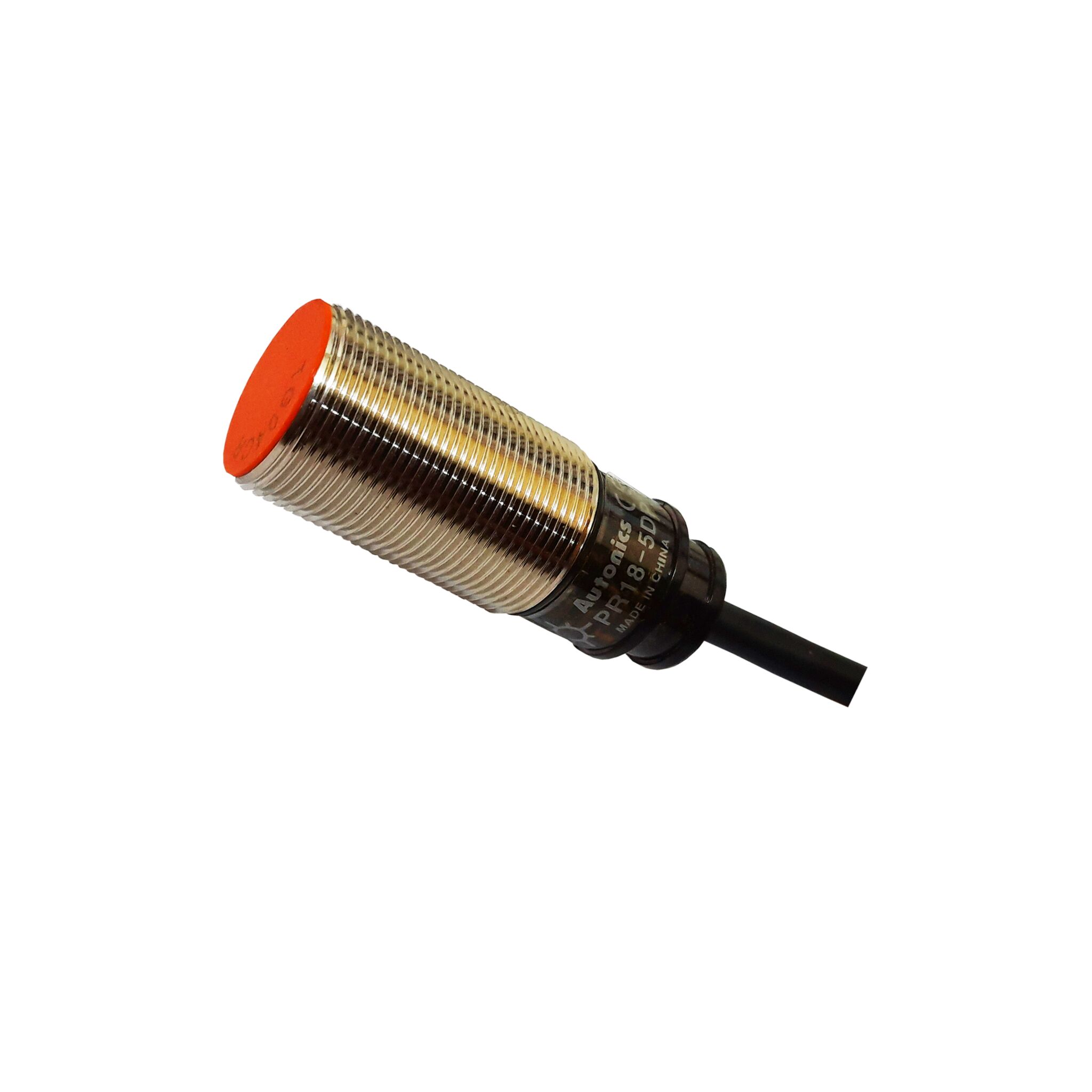

Autonics PR18-5DP Proximity Sensor

Description

PR18-5DP  Autonics Proximity Sensor, Cylindrical Type Proximity Sensor

Features:

  • Improves the noise resistance with dedicated IC (DC 3-wire)
  • Long life cycle and reliable simple operation
  • Red LED status indication
  • IP67 rated waterproof structure (IEC standard)
  • Replacer for micro switches and limit switches
