₹3,147.00 Excluding GST
Available in Stock
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BEN5M-MFR |
| Sensing Type | Retroreflective |
| Sensing Distance | 0.1 to 5m |
| Sensing Target | Opaque materials of Min. Ø 60mm |
| Response time | Max. 20ms |
| Power Supply | 24-240VAC ± 10% 50/60Hz, 24-240VDC ±10% |
| Power Consumption | Max. 4VA |
| Light Source | Infrared LED |
| Operation Mode | Light ON or Dark On mode selectable by switch |
| Relay life cycle | Mechanically : Min 50,000,000, Electrically : Min 100,000 |
| Indicator | Operation Indicator: Orange, Stable Indicator, Green |
| Connection | Outgoing Cable |
| Vibration | Mechanical:- 1.5mm amplitude at frequency of 10 – 55Hz in each of X,Y,Z directions of 2 hours.
Malfunction:- 1.5mm amplitude at frequency of 10 – 55Hz in each of X,Y,Z directions of 10 minutes, |
| Shock | Mechanical:- 500m/s² (50G) in X,Y,Z directions for 3 times
Malfunction:- 100m/s² (10G) in X,Y,Z directions for 3 times |
| Ambient Temperature | -20 to +65°C ( at non-freezing status ), Storage:- -25 to +70°C |
| Ambient Humidity | 35 to 85%RH , Storage:- 35 to 85%RH |
| Material | Case, ABS, Lens cover:- Acrylic, Lens:- Acrylic |
| Protection | IP50 (IEC Standard) |
| Cable | Ø 6.0mm, 5P, Length: 2m |
| Weight | Approx. 208g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

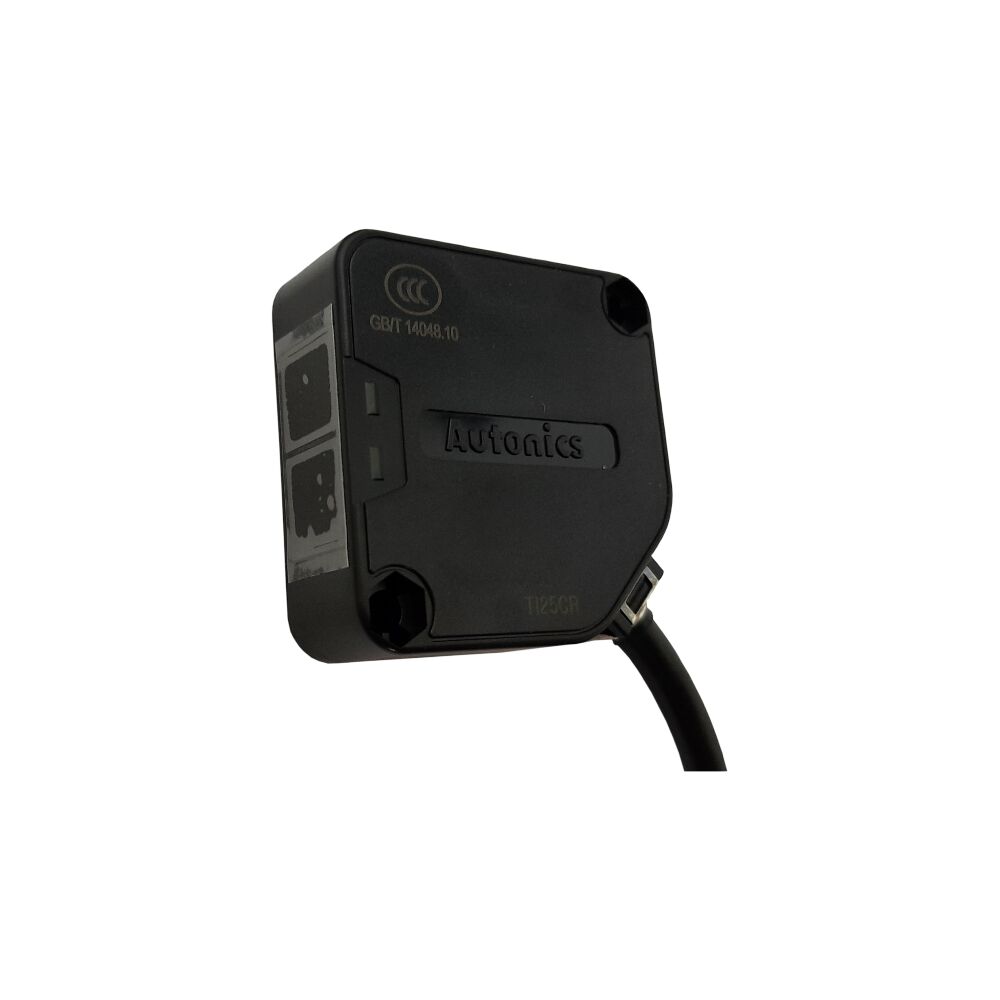

BEN5M-MFR Retroreflective Photo Sensor
Features:
