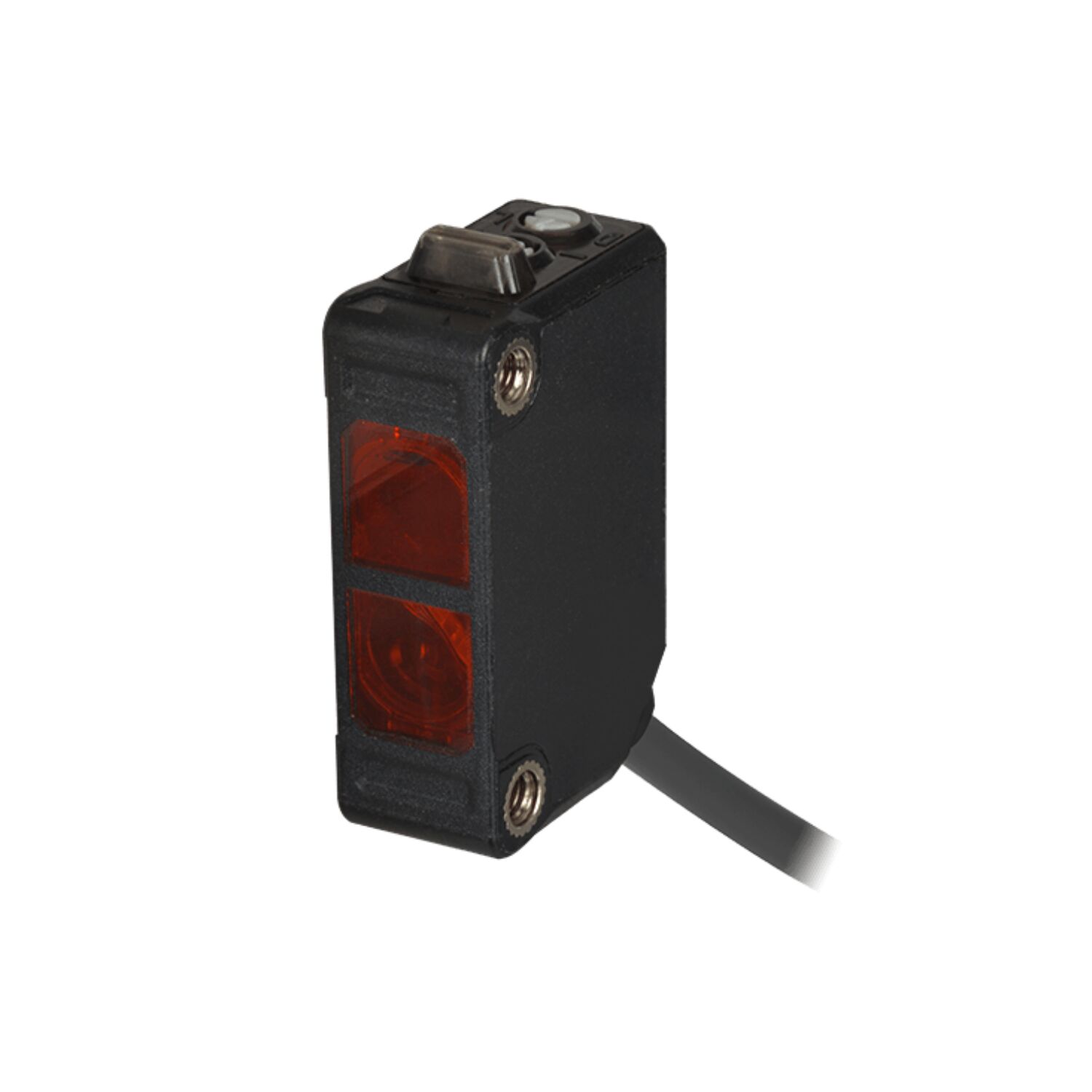

BJR3M-PDT-P Autonics Photoelectric Sensor

Available on order

₹9,125.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model no	BJR3M-PDT-P
Oil proof/oil resistant	Oil resistant type
Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m
Sensing target	Opaque material of min. Ø75mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	10-30VDC
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Ø4mm, 3-wire, 2m
Protection structure	IP67 (IEC standard), IP67G (JEM standard)
Approval
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Weight	Approx. 115g(approx. 50g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BJR3M-PDT-P Autonics Photoelectric Sensor

Features

Stronger in the environment with full of cutting fluid or lubricating oil (optimized for automobile and machine tool industry) BJR (oil resistant type): Special coating prevents penetration of oil into the product. BJR-F (oil proof type): Even if oil penetrates into the product, it operates normally
Long sensing distance with lens of high performance – Through-beam type: 15m, Diffuse reflective type: 1m, Polarized retroreflective type: 3m (MS-2S)
M.S.R. (Mirror Surface Rejection) function (retroreflective type)
Compact size: W20 × H32 × L11mm
Light ON/Dark ON operation mode switch
Sensitivity adjuster
Built-in reverse polarity protection circuit and output short overcurrent protection circuit
Mutual interference prevention function (except through-beam type)
Excellent noise immunity and minimal influence from ambient light
IP67 protection structure (IEC standard)
BJR (oil resistant type): IP67G oil resistance protection structure (JEM standard)
BJR-F (oil proof type): IP67F oil proof protection structure (JEM standard)
