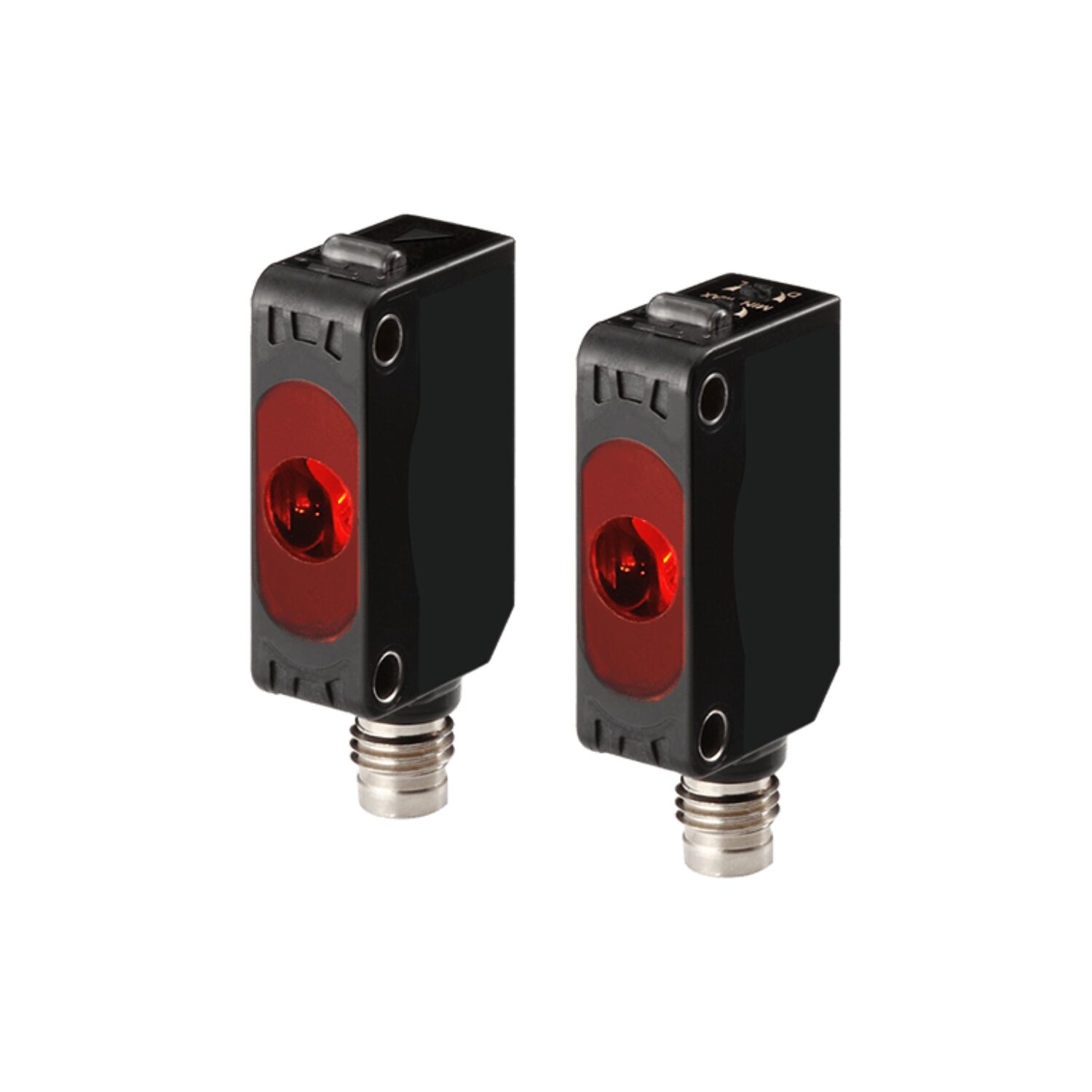

BJ10M-TDT-C Autonics Photoelectric Sensor

Available on order

4,262.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model no BJ10M-TDT-C
Sensing type Through-beam type
Sensing distance 10m
Light source Red LED(660nm)
Response time Max. 1ms
Power supply 12-24VDC
Current consumption Emitter/Receiver: Max. 20mA
Operation mode Light ON/Dark ON(set by switch)
Control output NPN open collector
Connection type Connector type(M8)
Protection structure IP67
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver
Weight Approx. 45g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

BJ10M-TDT-C Autonics Photoelectric Sensor

Features

  1. Long Sensing distance with high quality lens
  2. Waterproof Structure IP65 by Rubber injection
  3. Compact Size
  4. Detects up to 15m
  5. Long Sensing Distance : Diffuse reflective type 1m, Polarized reflective type 3m
  6. Light ON / Dark ON selectable
  7. Biult in sensitivity adjuster
  8. Mutual interference prevention function
  9. Stable detection for transparent object
