Home > Autonics Photoelectric Sensor > BYS500-TDT1,2 Autonics Photoelectric Sensor

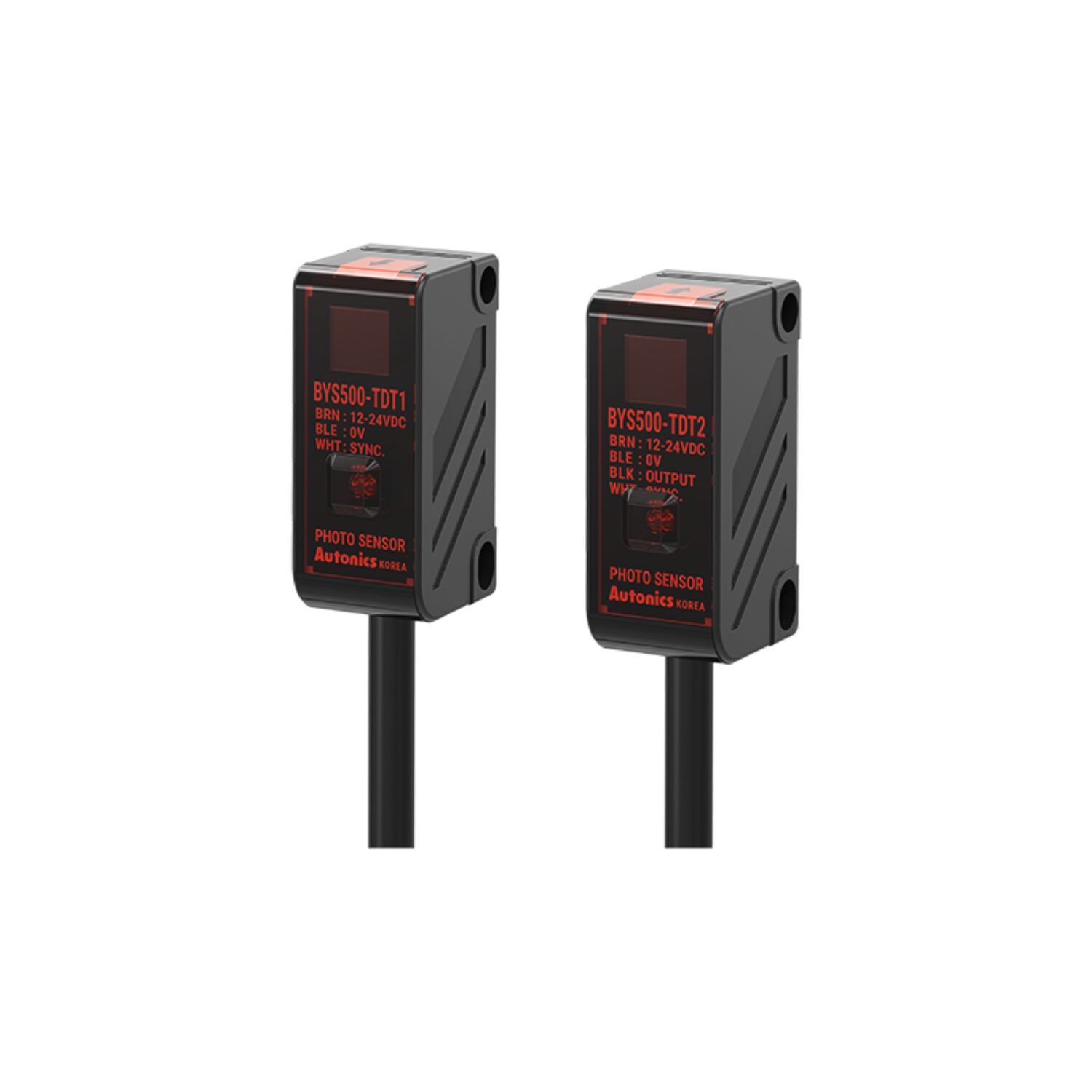

Autonics BYS500-TDT1,2 Photoelectric Sensor

BYS500-TDT1,2 Autonics Photoelectric Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model no	BYS500-TDT1,2
Sensing type	Through-beam type(side sensing type)
Sensing distance	Opaque material of min. Ø5mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power supply	12-24VDC
Current consumption	Emitter/Receiver: Max. 30mA
Operation mode	Dark ON
Control output	NPN open collector
Connection type	Cable type(Ø4, 2m)
Protection structure	IP50
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories	Fixing bracket, Bolts, Nuts
Weight	Approx. 150g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Category: Autonics Photoelectric Sensor Tags: AUTONICS Autonics BYS500-TDT1 Autonics BYS500-TDT2 Autonics Photoelectric Sensor BYS500 BYS500-TDT

Description
Reviews (0)

Description

BYS500-TDT1,2 Autonics Photoelectric Sensor

Features

5mall size : W12xHIG XxD30mm
Minimizing malfunction by extraneous light by synchronizing emitter and receiver.
Reverse power polarity and overcurrent
Fast response speed : Max. 1ms
