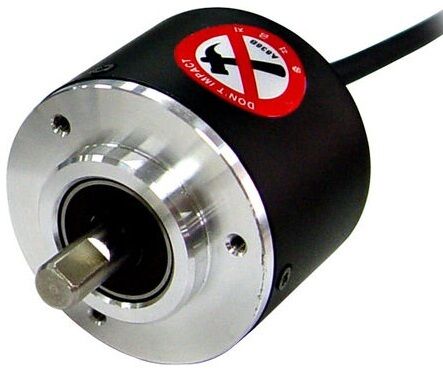

E50S8-1024-3-T-1 Autonics Rotary Encoder

7,773.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. E50S8-1024-3-T-1
Series E50S Series Shaft Type of Incremental Rotary Encoder
Diameter
50mm, Shaft Type
Shaft Diameter 8mm
Pulse/Resolution(P/R) 1024
Output Phase A, B, Z
Output Totem Pole Output
Power Supply 5-24VDC
Max. Response Frequency
300kHz
Insulation Resistance
Min. 100MΩ
Dielectric Strength
750VAC 50/60Hz for 1 Minute
Connection
250mm Connector Cable Type
Shaft Loading
Radial : 10kgf

Thrust : 2.5kgf

Vibration
1.5mm Amplitude
Shock Approx. Max. 75G
Ambient Temperature -10 to 70°C, Storage : -25 to 85°C
Ambient Humidity 35 to 85%RH, Storage : 35 to 90%RH
Protection IP50
Unit Weight Approx. 275g, Connector Type : 180g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics E50S8-1024-3-T-1 Rotary Encoder

Description

E50S8-1024-3-T-1 Autonics Rotary Encoder
Features:
● 12-24VDC power supply of line driver output(Line-up)
● Suitable for measuring angle, position, revolution, speed, acceleration and distance
● Power supply : 5VDC, 12-24VDC ±5%
