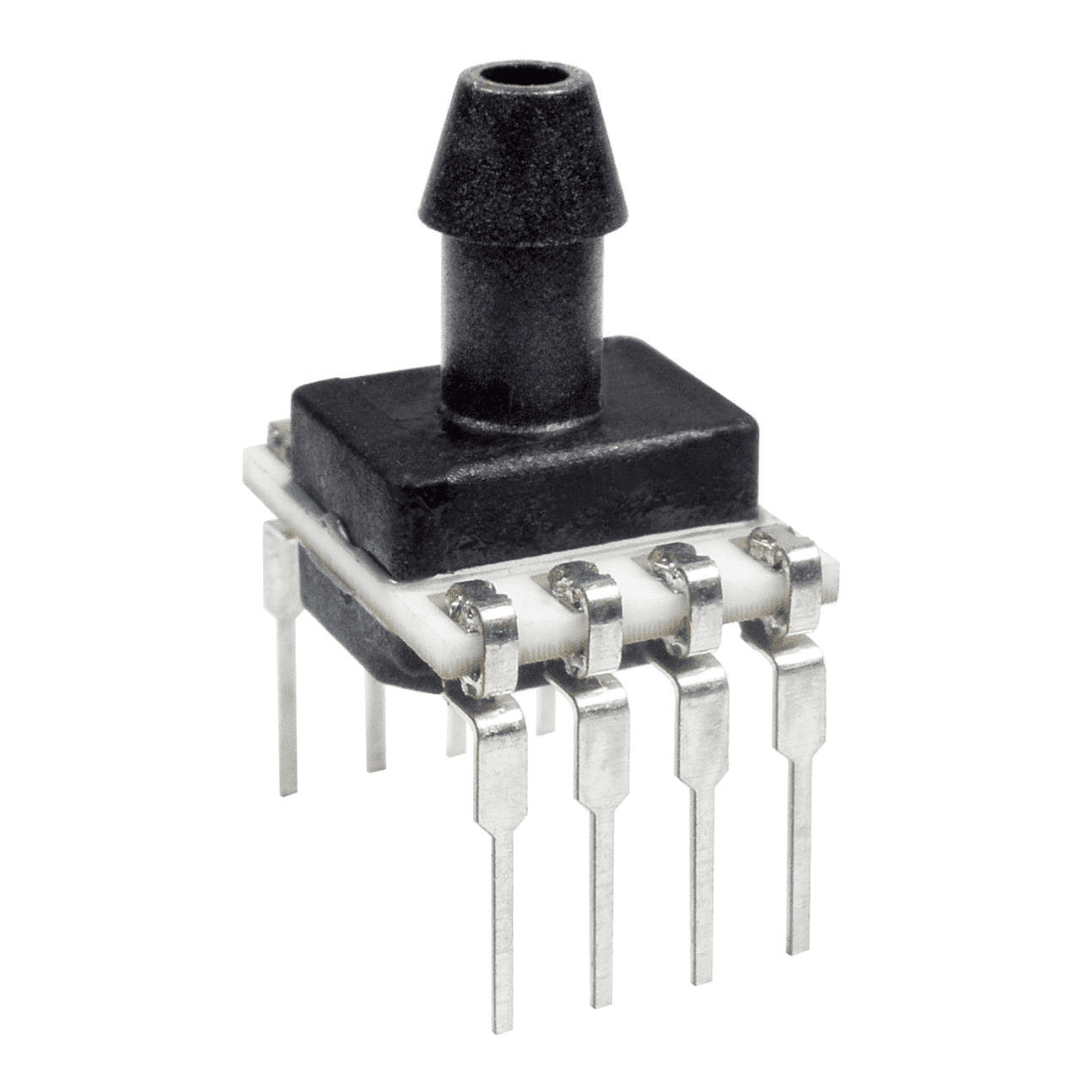

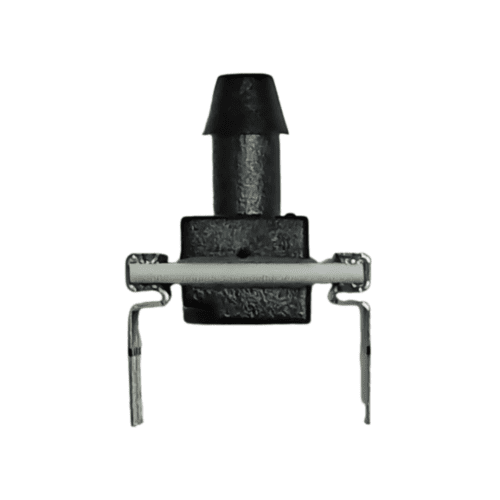

Name: SSCDANN015PAAA5 Honeywell Board Mount Pressure Sensor
SKU: 67319
Price: 1200.00 INR
Availability: InStock

SSCDANN015PAAA5 Honeywell Board Mount Pressure Sensor

₹1,200.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	SSCDANN015PAAA5
Product Series	SSC Series Standard Accuracy, Compensated/Amplified
Package	DIP (Dual Inline Pin)
Pressure Port	Single axial barbed port
Media	Dry gases only, no diagnostics
Pressure Range	0 psi to 150 psi
Output Type	Analog
Transfer Function	10% to 90% of V supply (analog)
Supply Voltage	5.0 Vdc
Humidity	Gases only: 0% to 95% RH, non-condensing Liquid Media: 100% condensing or direct liquid media on Port 1
Vibration	MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
Shock	MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Life	1 million pressure cycles minimum
Solder reflow	J-STD-020-D.1 Moisture Sensitivity Level 1 (unlimited shelf life when stored at <30 °C/85 % RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SSCDANN015PAAA5 Honeywell Board Mount Pressure Sensor, TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range.

The Honeywell SSCDANN150PGAA5 Pressure Sensor SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital.

The SSC Series is calibrated over the temperature range of -20 °C to 85 °C [-4 °F to 185 °F]. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, gage, or differential pressures.

The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between two pressure ports.

The TruStability pressure sensors are intended for use with non-corrosive, non-ionic gases, such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are designed and manufactured according to ISO 9001 standards.
