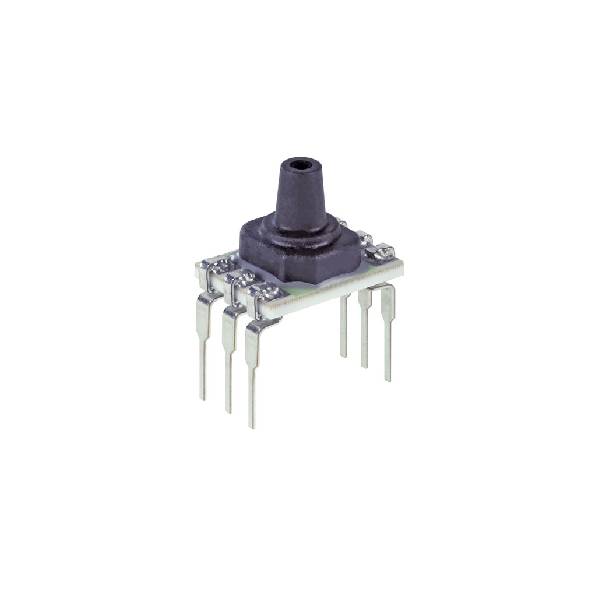

ABPDLNN100MG2A3 Honeywell Board Mount Pressure Sensor

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	ABPDLNN100MG2A3
Product Series	ABP Series Amplified Basic
Package	DIP (Dual Inline Pin)
Pressure Port	Single axial barbless port
Media	Dry gases only, no diagnostics
Pressure Range	0 mbar to 100 mbar
Output Type	2 C, Address 0x28
Transfer Function	10% to 90% of Vsupply (analog), 214 counts (digital) no temperature output, no sleep mode
Supply Voltage	3.3 Vdc
Humidity	All external surfaces: 0 %RH to 95 %RH, non-condensing Internal surfaces of Liquid Media Option (T, V, B, C, F, G): 0 %RH to 100 %RH, condensing Internal surfaces of Dry Gases Option (N, D): 0 %RH to 95 %RH, non-condensing
Vibration	15 g, 10 Hz to 2 kHz
Shock	100 g, 6 ms duration
Life	1 million pressure cycles minimum
Solder reflow	J-STD-020-D.1 Moisture Sensitivity Level 1 (unlimited shelf life when stored at <30°C/85 %RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The ABPDLNN100MG2A3 Honeywell Pressure Sensor , ABP Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell ABPDANN150PGAA5 Pressure Sensor are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards.

• Dry gases option: The input port is limited to non-corrosive, non-ionic media (e.g., dry air, gases) and should not be exposed to condensation. The gases are limited to media compatible with high temperature polyamide, silicone, alumina ceramic, silicon, gold, and glass.

• Liquid media option: Includes an additional silicone-based gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur. Since port P2 is designed for use with non corrosive liquids, this option is often suitable for wet-wet differential sensing.
