₹5,447.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | SPC1-35-E |
| Control phase | Single-phase |
| Control method | Phase control Cycle control (zero cross turn-on)-Control period: 0.5 sec, 2 sec, 10 sec ON/OFF control (zero cross turn-on) |
| Power supply | 220VAC~ 50/60Hz |
| Applied load | Resistance load(min. load: over 5% of rated current) |
| Rated load voltage | 220VAC~ |
| Rated load current | 35A |
| Control input | DC4-20mA, 1-5VDC , External 24VDC , External adjuster (1kΩ), External contact(ON/OFF) |
| Function | Output limit (0 to 100%), Soft Start (0 to 50 sec), Output display, 50/60Hz automAtic recognition |
| Ambient temperature | 0~50℃ |
| Cooling method | Natural cooling |
| Control circuit | Micom control type |
| Environment Ambient temperature | 0 to 50℃, storage: -25 to 65℃ |
| Environment Ambient humidity | 35 to 85% RH |
| Weight | Approx. 1kg |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

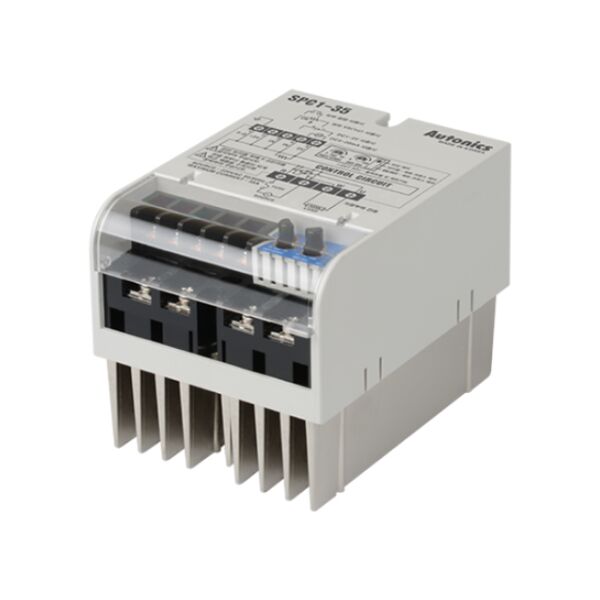

SPC1-35-E Autonics Power Controller
