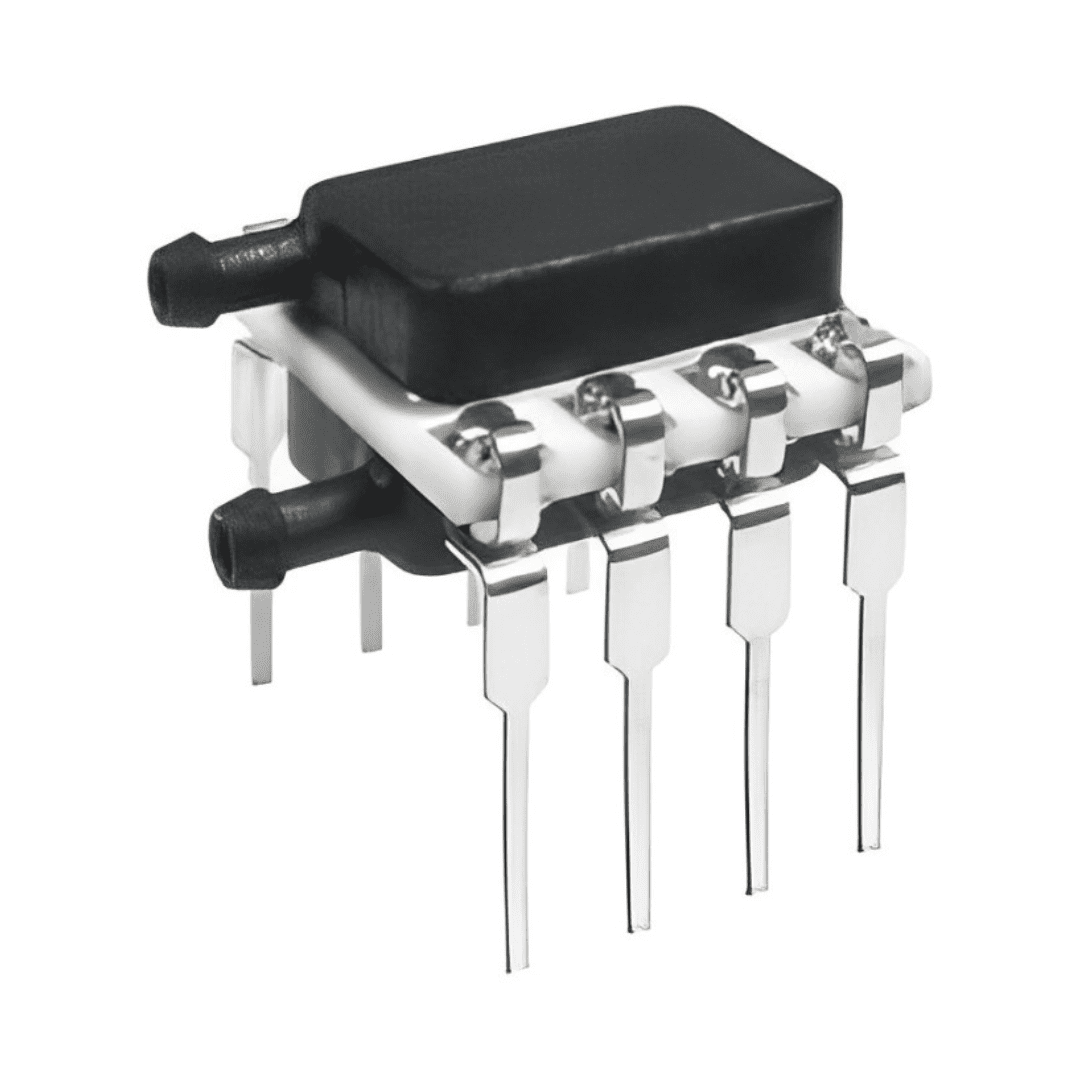

RSCDRRM020NDSE3 Honeywell Board Mount Pressure sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	RSCDRRM020NDSE3
Humidity (gases only)	0% to 95% RH, non-condensing
Vibration	15 g, 10 Hz to 2 Hz
Shock	100 g, 6 ms duration
Life	1 million pressure cycles minimum
Solder reflow	J-STD-020-D.1 Moisture Sensitivity Level 1 (unlimited shelf life when stored at <30°C/85 % RH)
Ports and cover	high temperature polyamide
Substrate	alumina ceramic
Adhesives	epoxy, silicone
Electronic components	plastic, silicon, glass, solder

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

RSCDRRM020NDSE3 Honeywell Board Mount Pressure sensor

The RSC Series is a piezoresistive silicon pressure sensor offering a digital output for reading pressure over the specified full scale pressure span and temperature range. It is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using a 24-bit analog-to-digital converter with integrated EEPROM. Pressure data may be acquired at rates between 20 and 2000 samples per second over an SPI interface. It is intended for use with non-corrosive, non-ionic gases, such as air and other dry gases, designed and manufactured according to ISO9001 standards, and is REACH and RoHS compliant.
