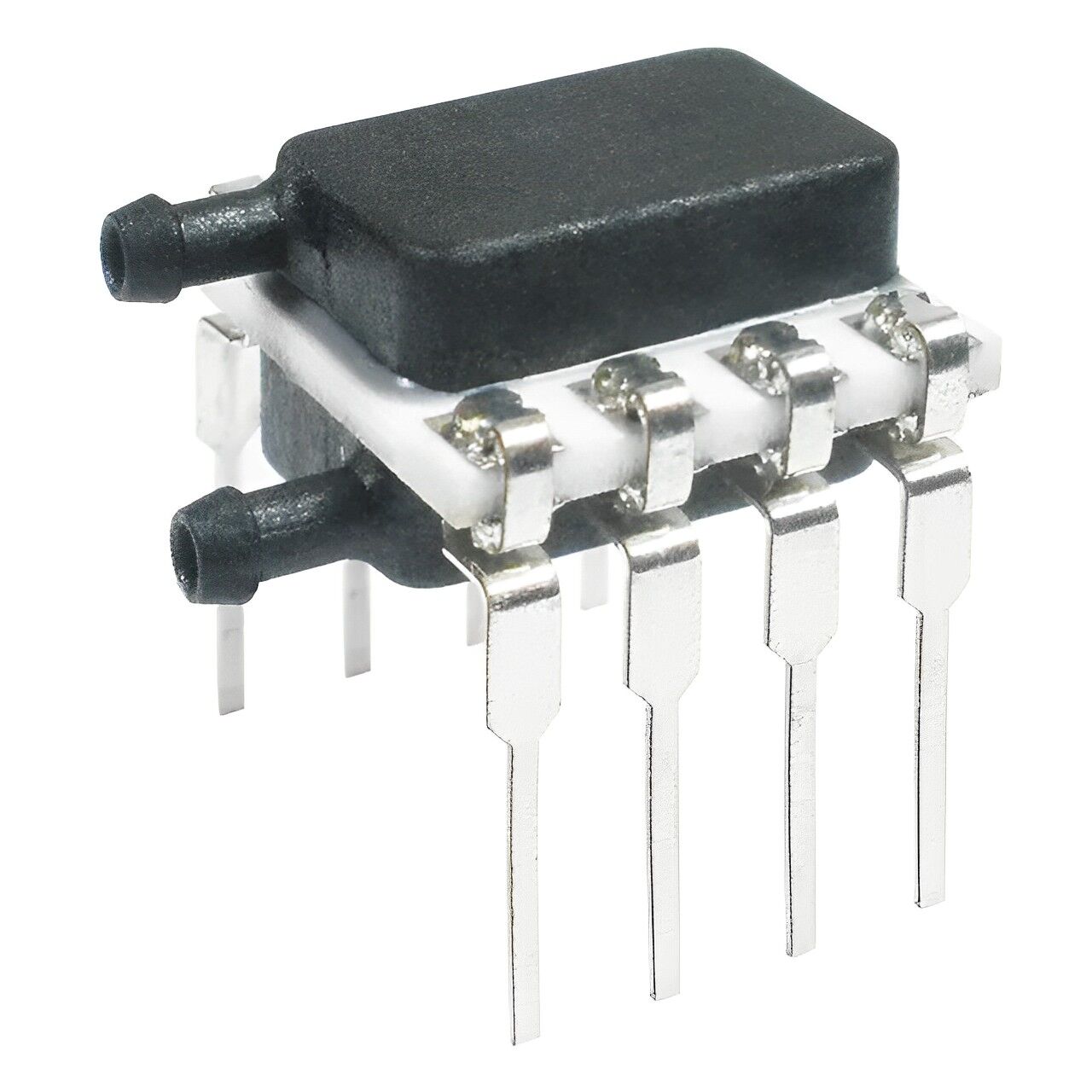

SSCDRRN030PDAA5 Honeywell Board Mount Pressure Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product  Description
Brand Honeywell
Model SSCDRRN030PDAA5
Product Series SSC Series Standard Accuracy, Compensated/Amplified
Package DIP (Dual Inline Pin)
Pressure Port Single radial barbed port
Media Dry gases only, no diagnostics
Pressure Range ±30 psi
Output Type Analog
Transfer Function 10% to 90% of Vsupply (analog), 2(14) counts (digital)
Supply Voltage 5.0 Vdc
Humidity Gases only: 0% to 95% RH, non-condensing
Liquid Media: 100% condensing or direct liquid media on Port 1
Vibration MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
Shock MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms duration)
Life 1 million pressure cycles minimum
Solder reflow J-STD-020-D.1 Moisture Sensitivity Level 1
(unlimited shelf life when stored at <30 °C/85 % RH)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

SSCDRRN030PDAA5  Honeywell Pressure Sensor  TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. Honeywell SSCDRRN030PDAA5 Pressure Sensor  SSC Series is fully calibrate and temperature is compensate for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrate Circuit (ASIC).

Calibrated output values for pressure is update at approximately 1 kHz for analog and 2 kHz for digital. The SSC Series is calibrate over the temperature range of -20 °C to 85 °C [-4 °F to 185 °F]. The sensor is characterize for operation from a single power supply of 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure.

Gage versions are in reference to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between two pressure ports. The TruStability pressure sensors is intend for use with non-corrosive additionally non-ionic gases such as air and other dry gases. Available options extend the performance of these sensors to non-corrosive, non-ionic liquids for pressure ranges above 40 mbar | 4 kPa | 20 inH2O. All products are design and manufactured according to ISO 9001 standards.
