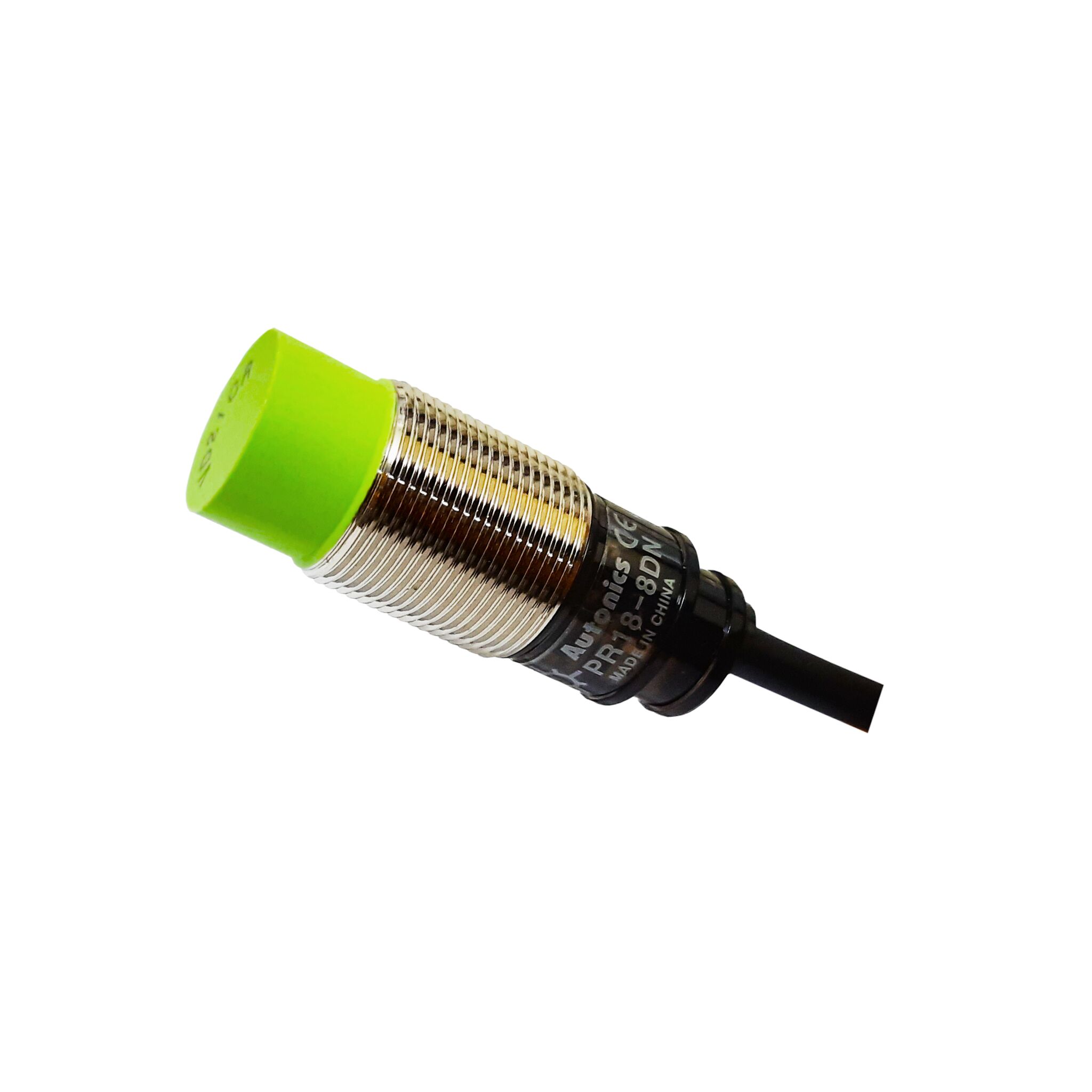

PR18-8DN Autonics Proximity Sensor

1,179.00 Excluding GST

(1 customer review)
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. PR18-8DN
8mm
350Hz
Non-flush
25x25x1mm(iron)
DC 3-wire type
M18
Max. 10mA
Standard cable
IP67(IEC standard)
-25 to 70 Deg. C
Max. 10% of sensing distance
Max. 1.5V
Setting Distance 0 to 5.6mm
12-24VDC
Control Output 200 mA
Insulation Resistance 50 M Ω (Min)
Dielectric Strength 1500 VAC 50/60 Hz for 1 min
Vibration 1mm amplitude
Shock 500 m/s²
Indicator Operation Indicator (Red Led)
Ambient temperature -25 to 70 Deg. C
Ambient Humidity 35 to 95% Rh
Protection Circuit Reverse power polarity, surge, overcurrent protection
Protection IP67 (IEC standard)
Approx. 122g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics PR18-8DN Proximity Sensor

Description

PR18-8DN Autonics Proximity Sensor

Features:

  • DC 3 wire type
  • Integrated overload and short protection circuit
  • Integrated reverse polarity protection circuit
  • Integrated surge protection
  • Improved noise resistance with dedicated IC
  • Red LED status indication
  • IP67 Protection degree
  • Replaceable for micro switches and limit switches
