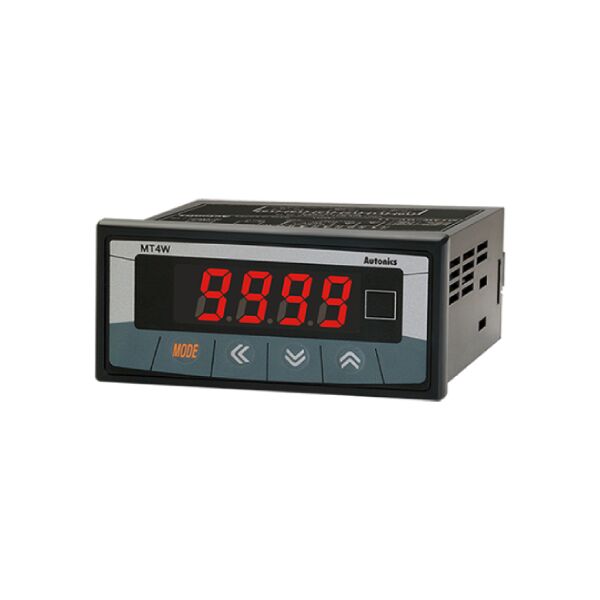

Name: MT4W-DA-4N Autonics Panel Meter
SKU: 64914
Price: 4288.00 INR
Availability: OutOfStock

MT4W-DA-4N Autonics Panel Meter

Available on order

₹4,288.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model no	MT4W-DA-4N
Display method	4-digit 7-segment LED
Character height	14.2mm
Max. display Range	-1999 to 9999
Measurement	DC current
Input specification	0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA
AC Measurement	Average value (AVG), Root mean square value (RMS)
Power supply	100-240VAC~ 50/60Hz
Output Main Output(Comparative Value)	Indicator
Approval	CE
Display accuracy	• 23?±5? – F.S. ±0.1% rdg ±2-digit F.S. +0.3% rdg ±3-digit max. only for 5A terminal. • -10? to 50â„ƒ – F.S. ±0.5% rdg ±3-digit
Max. allowable input	110% F.S. for each measured input range
A/D conversion method	?? (Sigma Delta) ADC
Sampling cycle	50ms
Hold function	Includes (external hold function)
Environment Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Weight	Approx. 326g (approx. 211g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Features :

Various input/output options (by model) -Input options: DC voltage, DC current, AC voltage, AC current
-Output options: RS485 communication output, low speed serial output,
BCD dynamic output, transmission output (DC 4-20 mA),
NPN/PNP open collector output,
relay contact output (default option: indicator / no output)
Maximum allowed input: 500 VDC, DC 5 A, 500 VAC ~, AC 5 A
Display range: -1999 to 9999
High/low-limit display scale function
AC frequency measurement (range: 0.1 to 9999 Hz)
Various functions: peak display value monitoring, display cycle delay,
zero-point adjustment, peak display value correction,
PV transmission output (DC 4-20 mA) scale, etc.
Power supply: 12-24 VDC, 100-240 VAC ~
DIN W 72 x H 36 mm
