Name: MX4W-A-F2 Autonics Panel Meter
SKU: 59761
Price: 4946.00 INR
Availability: OutOfStock

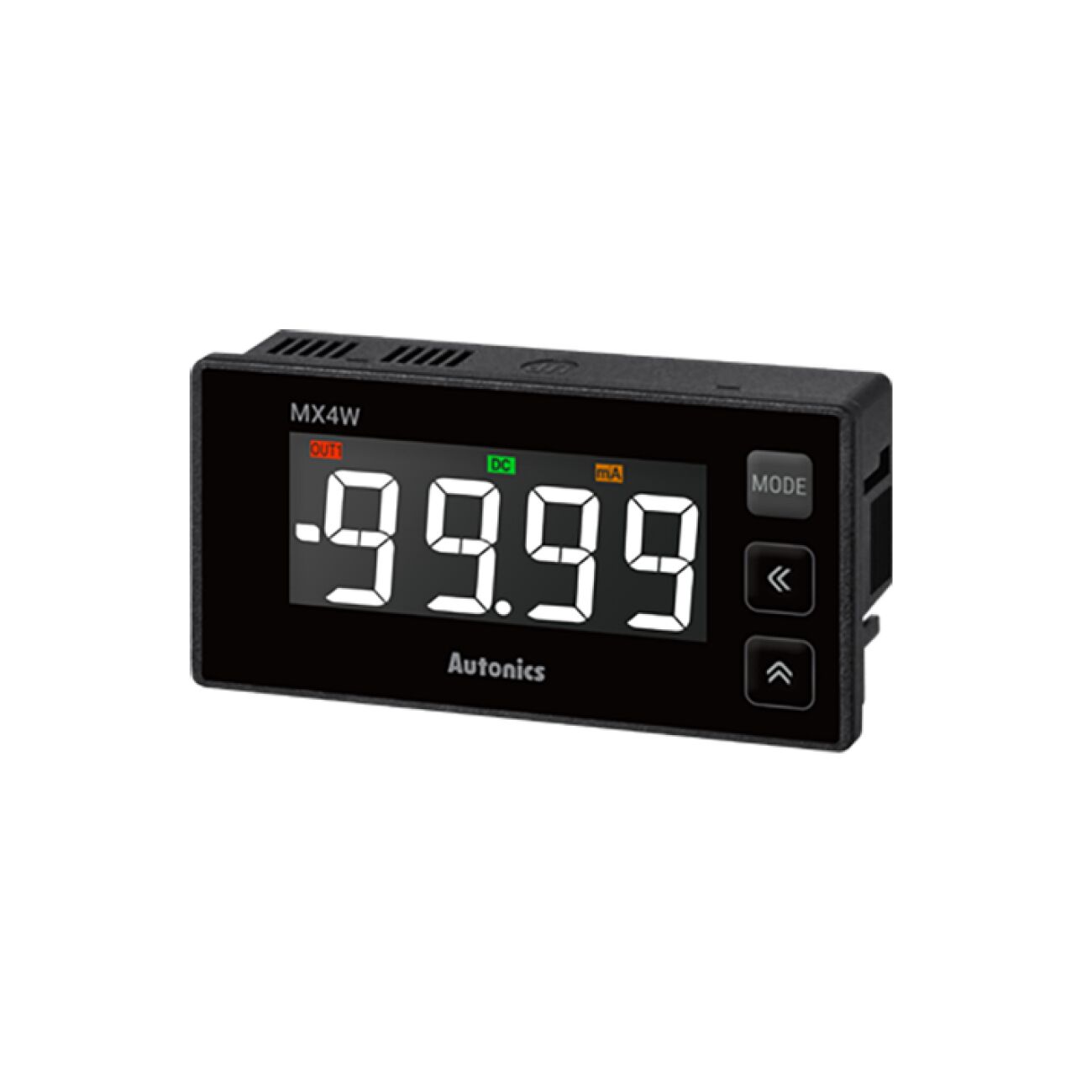

MX4W-A-F2 Autonics Panel Meter

Available on order

₹4,946.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model No.	MX4W-A-F2
Measurement input	DC/AC current
Digit	9999 (4-Digit )
Size	DIN W96 x H48mm
Power Supply	24-240 VAC 50/60 Hz, 24-240 VDC
Allowance Voltage range	90-110% of the rated voltage
Display method	12-Segment Other display parts (red,green yellow. Indicator model : white ) LCD Display
Display Cycle	0.2 – 5.0 sec
Max Display range	-9999 To 9999
Dielectric strength	3000 VAC 50/60 Hz for 1 min
Insulation Type	Double insulation or reinforces insulation
Weight	Approx.100g
Ambient temperature	-10 – 50 Deg.C , Storage: -20 -60 Deg.C
Ambient Humidity	35-85%Rh , Storage 35-85%Rh

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Features

Improved visibility with LCD Display
Isolated input and power module allows powering of multiple units using a single power supply
Mounting space saving with compact design : downsized back length by 78% compared to another model in same Din size
Various input options : DC Voltage, DC current, Ac voltage, AC current
Max. measuring inputs: 500VDC, 500VAC, DC5A, AC5A
Display range:- -9999 To 9999
High / Low Scale function
Power supply :- 24-240 VAC 50/60 Hz, 24-240 VDC universal
