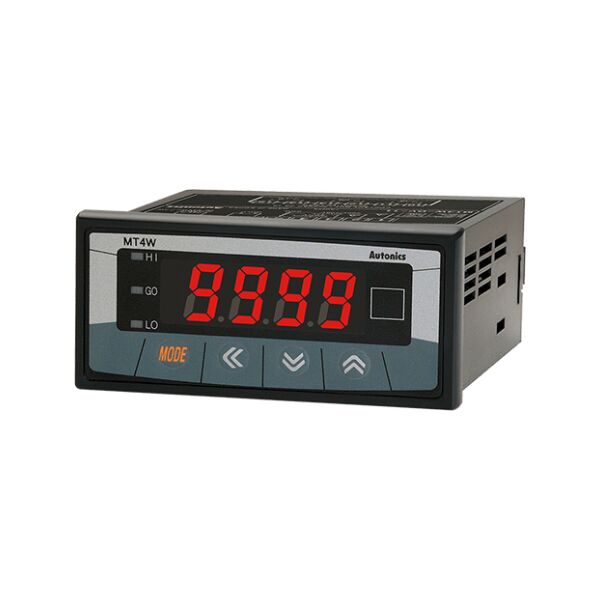

MT4W-DV-49 Autonics Panel Meter

Available on order

7,525.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model no MT4W-DV-49
Display method 4-digit 7-segment LED
Character height 14.2mm
Max. display Range -1999 to 9999
Measurement DC voltage
Input specification 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV
Power supply 100-240VAC~ 50/60Hz
Output Main Output(Comparative Value) PNP open collector (HI, GO, LO)
Output Sub Output(Display Value) RS485 communication
Display accuracy • 23?±5? – F.S. ±0.1% rdg ±2-digit
F.S. +0.3% rdg ±3-digit max. only for 5A terminal.
• -10? to 50℃ – F.S. ±0.5% rdg ±3-digit
Max. allowable input 110% F.S. for each measured input range
A/D conversion method (Sigma Delta) ADC
Sampling cycle 50ms
Hold function Includes (external hold function)
Environment Ambient temperature -10 to 50℃, storage: -20 to 60℃
Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Insulation type Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Weight Approx. 326g (approx. 211g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

MT4W-DV-49 Autonics Panel Meter

Features :

  • Various input/output options (by model) -Input options: DC voltage, DC current, AC voltage, AC current
    -Output options: RS485 communication output, low speed serial output,
    BCD dynamic output, transmission output (DC 4-20 mA),
    NPN/PNP open collector output,
    relay contact output (default option: indicator / no output)
  • Maximum allowed input: 500 VDC, DC 5 A, 500 VAC ~, AC 5 A
  • Display range: -1999 to 9999
  • High/low-limit display scale function
  • AC frequency measurement (range: 0.1 to 9999 Hz)
  • Various functions: peak display value monitoring, display cycle delay,
    zero-point adjustment, peak display value correction,
    PV transmission output (DC 4-20 mA) scale, etc.
  • Power supply: 12-24 VDC, 100-240 VAC ~
  • DIN W 72 x H 36 mm
