Name: LP-A070-T9D6-C5T Autonics Logic Panel
SKU: 64910
Price: 51630.00 INR
Availability: OutOfStock

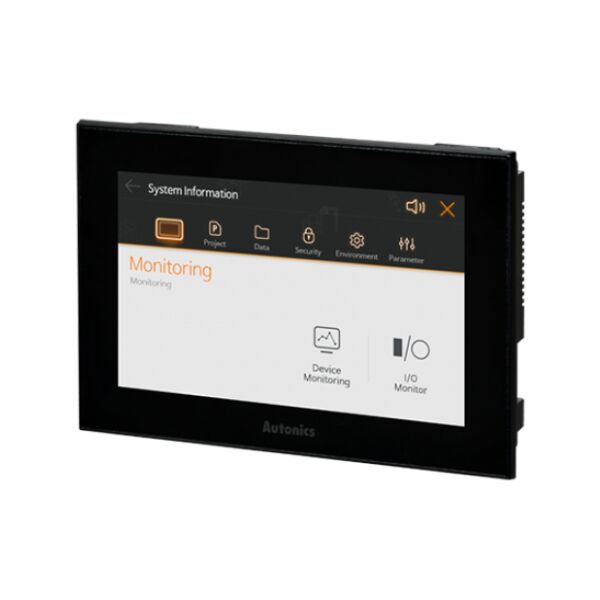

LP-A070-T9D6-C5T Autonics Logic Panel

Available on order

₹51,630.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model	LP-A070-T9D6-C5T
Display Specifications_LCD Type	TFT Color LCD
Display Specifications_Resolution	800×480 dot
Display Specifications_Display Area	154.4×93.44 mm
Display Specifications_Color	16,777,216 colors
Graphic Drawing Memory	64MB
Touch method	Pressure sensitive type
Interface_RS232C	1 EA
Power supply	24VDC
Environment_Ambient temperature	0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	742g(540g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Follow instructions in ‘Cautions during Use. Otherwise, It may cause unexpected accidents.
Power supply should be insulated and limited voltage/current or Class 2, SELV
power supply device.
Install a power switch or circuit breaker in the easily accessible place for supplying or
disconnecting the power.
Operate the product after supplying power to the product, input/output equipment, and
load. If operate product before supplying power, it may result in output error or malfunction.
Use a USB cable within 2m.
Keep away from high voltage lines ar power lines to prevent inductive noise.
Do not use near the equipment which generates strong magnetic force or high frequency noise.
Make a required space around the unit for radiation of heat, and do not block ventilation
openings.
