₹11,804.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BWPK25-05P |
| Sensing type | Through-beam type(direct beam) |
| Sensing distance | Long distance mode: 0.1 to 3m Short distance mode: 0.05 to 1m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 25mm |
| Number of optical axes | 5 |
| Sensing height/Total length | 100mm |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Control output | PNP open collector |
| Operation mode | Light ON/Dark ON(set by switch) |
| Environment Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable type(Ø4, 2m) |
| Protection structure | IP40 |
| Approval | CE |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque materials of min. Ø35mm |
| Response time | Max. 30ms |
| Material | Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate |
| Cable specification | Ø4.0mm, 4-wire, 2m(emitter: Ø4.0mm, 3-wire, 2m) (AWG 22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm) |
| Weight | Approx. 220g(approx. 180g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

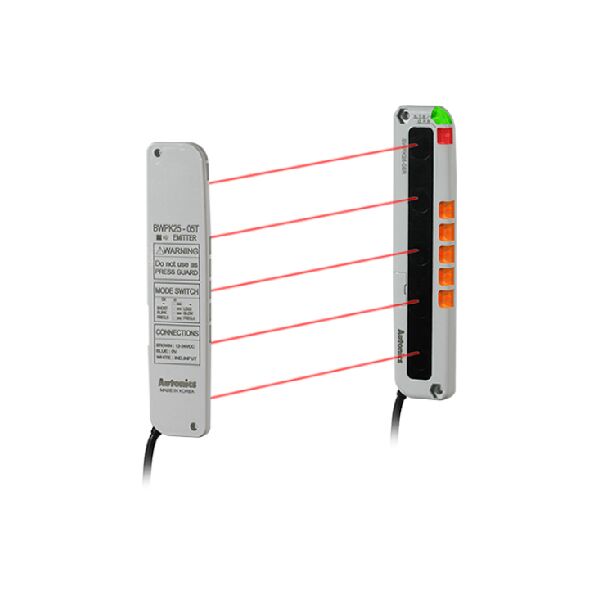

BWPK25-05P Autonics Area Sensor
