₹4,171.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BRQM5M-TDTA |
| Sensing type | Through-beam type |
| Sensing distance | 5m |
| Sensing target | Opaque material of min. Ø7mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Selectable Light ON or Dark ON by control wire (white) |
| Control output | NPN open collector |
| Connection type | Ø4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: brass, Ni-plate ?Lens, Lens cover: polymethyl methacrylate acrylic |
| Accessories Common | M18 fixing nut: 4, adjustment screwdriver |
| Weight | Approx. 220g (approx. 140g) |
| Approval | CE |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

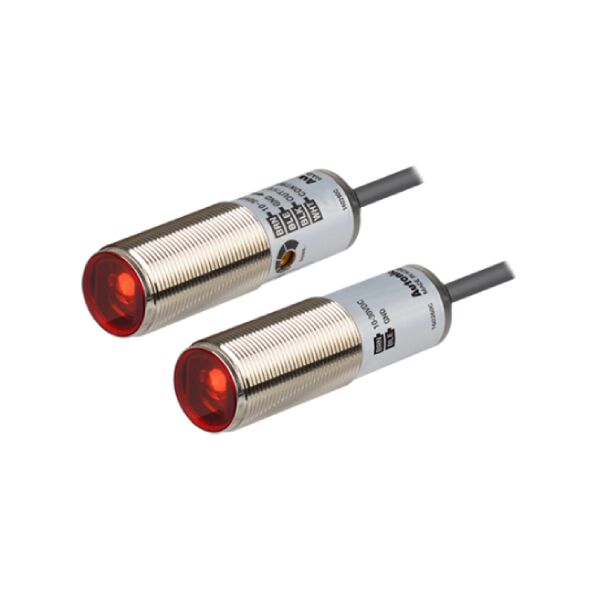

BRQM5M-TDTA Autonics Photoelectric Sensor
Features:-
