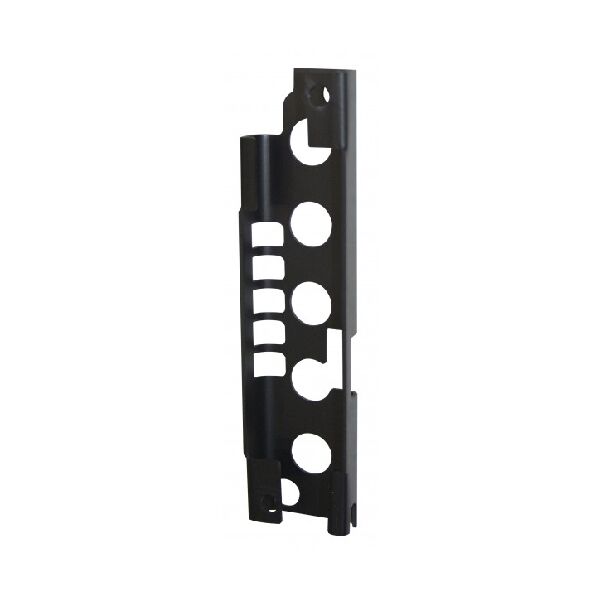

Name: BK-BWPK-P Autonics Area Sensor
SKU: 64791
Price: 20973.00 INR
Availability: OutOfStock

BK-BWPK-P Autonics Area Sensor

Available on order

₹20,973.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model no	BK-BWPK-P
Sensing type	Through-beam
Sensing distance	0.1 to 3m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	25mm
Number of optical axes	5
Sensing height/Total length	100mm
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode	Selectable Light ON/Dark ON by switch
Environment Ambient illumination	Ambient light: max. 10,0001x, Incandescent lamp: max. 3,0001x (received light side illumination)
Environment Ambient temperature	-10 to 55°C, storage: -20 to 60°C
Protection structure	IP40
Approval	CE
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85%RH
Response time	Max. 30ms
Material	Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
Cable specification	04.0mm, 4-wire. 2m (emitter: 04.0mm, 3-wire, 2m) (AWG 22, core diameter: 0.08mm, number of cores: 60, insulator out diameter 01.25mm)
Weight	Approx. 220g(approx. 180g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BK-BWPK-P Autonics Area Sensor

Features

Plastic injection case
Slim body (W30xH140xT10mm)
Long/Short sensing distance mode
(sensing distance selection function)
Mutual interference prevention (frequency switching function)
Selectable Light ON/Dark ON operation mode by switch
Picking indicator includes
Protection structure IP40 (IEC standard)

Functions of Autonics Area Sensor BK-BWPK-P

Switching of Long/Short mode (selectable sensing distance)

The rated sensing distance is 3m for Long mode, 1m for short mode. It minimizes interference setting as short mode when using more than 3 sets closely together.

Interference protection

In case of using 2 pcs of sensor in serial or parallel in order to extend sensing width, it may cause sensing error because of light interference.

This function is operating a sensor in transmission frequency A and another sensor in transmission frequency B to avoid these sensing errors by the light interference.

Light ON/Dark ON mode

The control output is ON when it is light ON in Light ON and the control output is ON when it is light OFF in Dark ON. It is available to select with user’s preference.
