Description

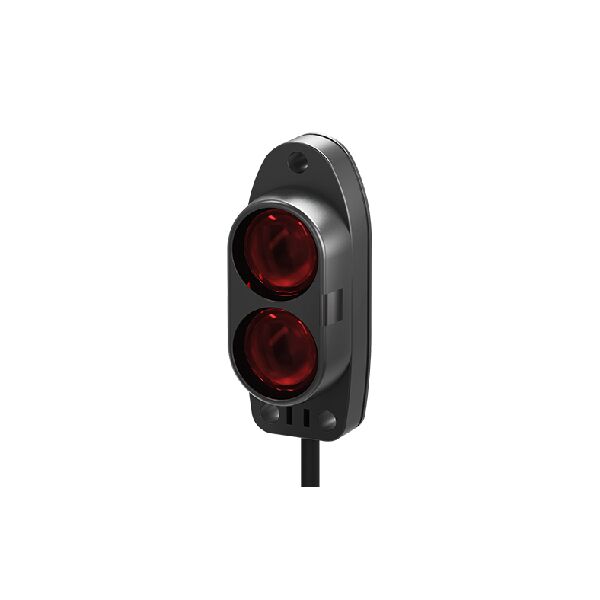

BA2M-DDT Autonics Photoelectric Sensor
Features:
- Realization of long sensing distance (2m)
by special optical design. - Built-in stable light ON indicator.
- Includes sensitivity adjustment function.
- 2 color LED display.
BA2M-DDT Autonics Photoelectric Sensor
₹3,592.00 Excluding GST
For Bulk requirement, Kindly click on enquiry now button
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BA2M-DDT |
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 2m |
| Sensing Target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Power Supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| current Consumption | Max. 15mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON |
| Control output | PNP open collector |
| Connection type | Cable type(Ø3, 2m) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -25 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP64 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Indicator: Polycarbonate, Adjuster: IXEF |
| Accessories | Adjuster driver |
| Weight | Approx. 50g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
