₹3,531.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BX700-DDT |
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 700mm |
| Sensing Target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Power Supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| current Consumption | Max. 50mA |
| Light Source | Infrared LED(940nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Timer function | Timer Function |
| Connection type | Terminal block type |
| Environment-Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment-Ambient temperature | -20 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP65 |
| Environment-Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories-Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 117g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

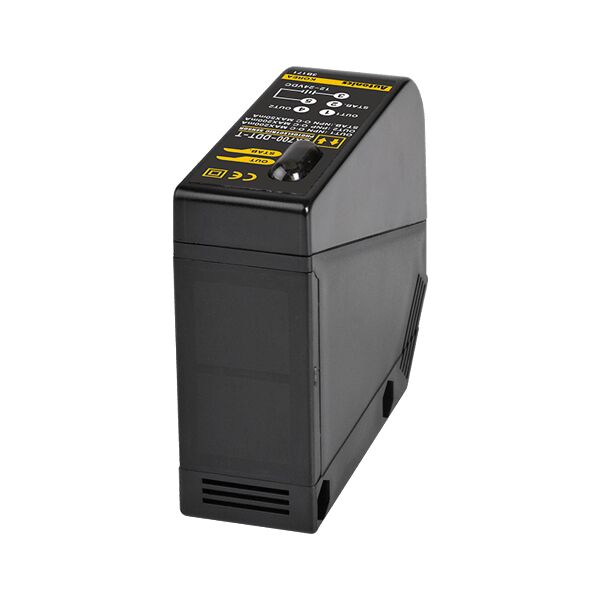

BX700-DDT Autonics Photoelectric Sensor
