Description

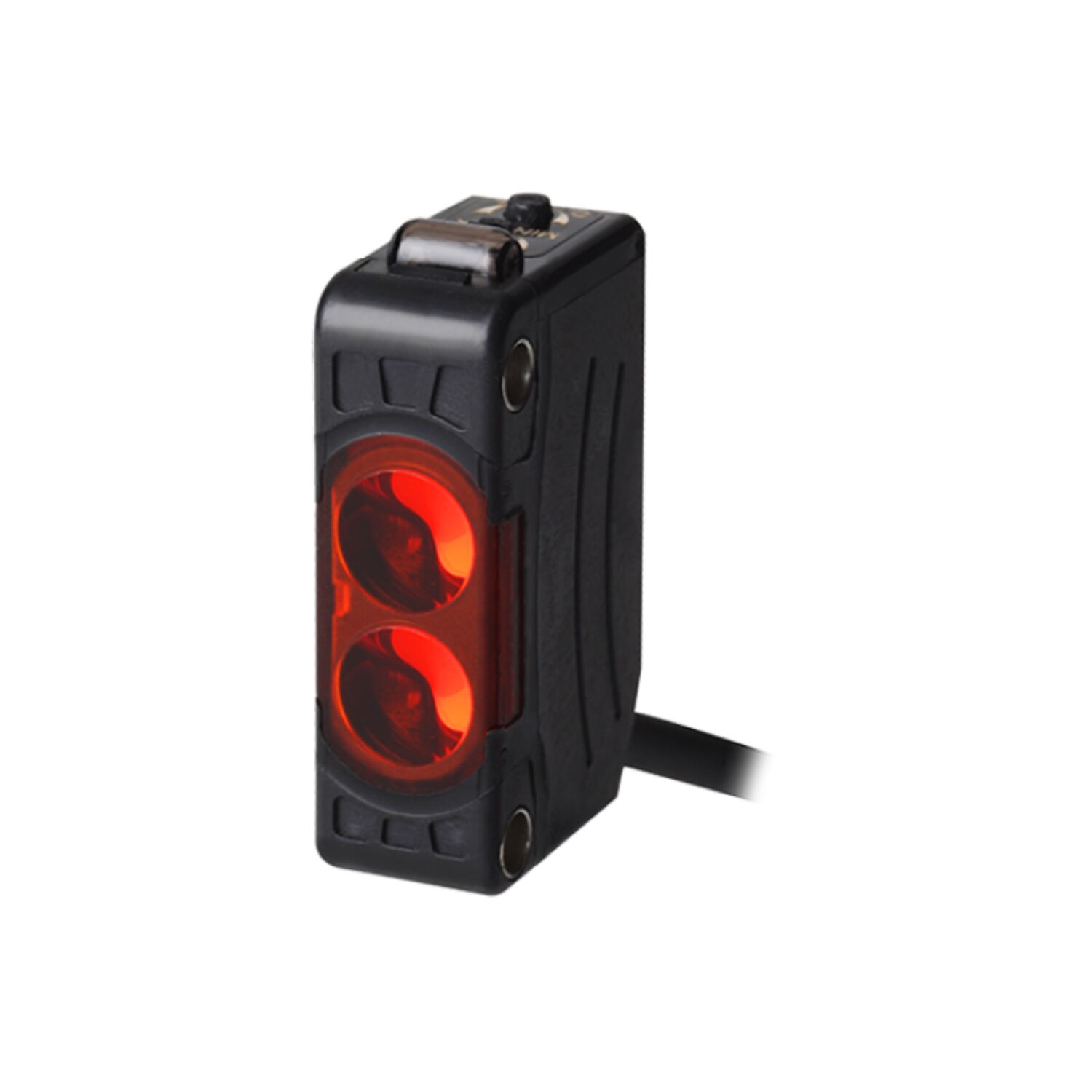

BJ300-DDT Autonics Photoelectric Sensor
BJ300-DDT Autonics Photoelectric Sensor
₹3,124.00 Excluding GST
For Bulk requirement, Kindly click on enquiry now button
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BJ300-DDT |
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 0-300mm |
| Sensing Target | Non-glossy white paper 300*300mm |
| Response time | Max. 1ms |
| Power Supply | 12-24VAC ± 10% , Ripple P – P : Max.10% |
| Current Consumption | Max. 30mA |
| Light Source | Infrared LED (850mm) |
| Operation Mode | Light ON/Dark ON Selectable |
| Sensitivity adjustment | Short Rotator adjuster |
| Indicator | Operation: Red, Stable: Green ( Emitter of power indicator for Transmitted beam : Red) |
| Connection | Outgoging Cable Type |
| Vibration | 1.5mm or 300mm amplitude at frequency of 10∼55Hz in each of X, Y, Z directions for 2 hours |
| Control output | PNP open collector |
| Ambient Temperature | -25 ∼ 55°C , Storage:- -25 to +70°C ( at non-freezing status ) |
| Ambient Humidity | 35 to 85% RH |
| Material | Case : PC+ ABS, Lens :- PMMA, LED Cap : PC |
| Protection | IP65 |
| Accessories_Common | Fixing bracket, Bolt, Adjustment Driver |
| Weight | Approx. 454g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
