₹2,108.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | ABS-S04PA-CN |
| Rated voltage | 24VDC  ±10% |
| Rated load voltage & current | 250VAC~ 3A, 30VDC 3A |
| Current consumption | ≤ 8mA |
| Applied relay | APAN3124 [MATSUSHITA(Panasonic)] |
| Number of relay points | 4-point |
| Indicator | Operation indicator: Blue LED |
| Applicable cable | AWG22-16(0.30 to 1.25mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass |
| Accessories | Jumper bar: 2(Model:JB-7.62-04) |
| Weight | Approx. 104g(approx. 68g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

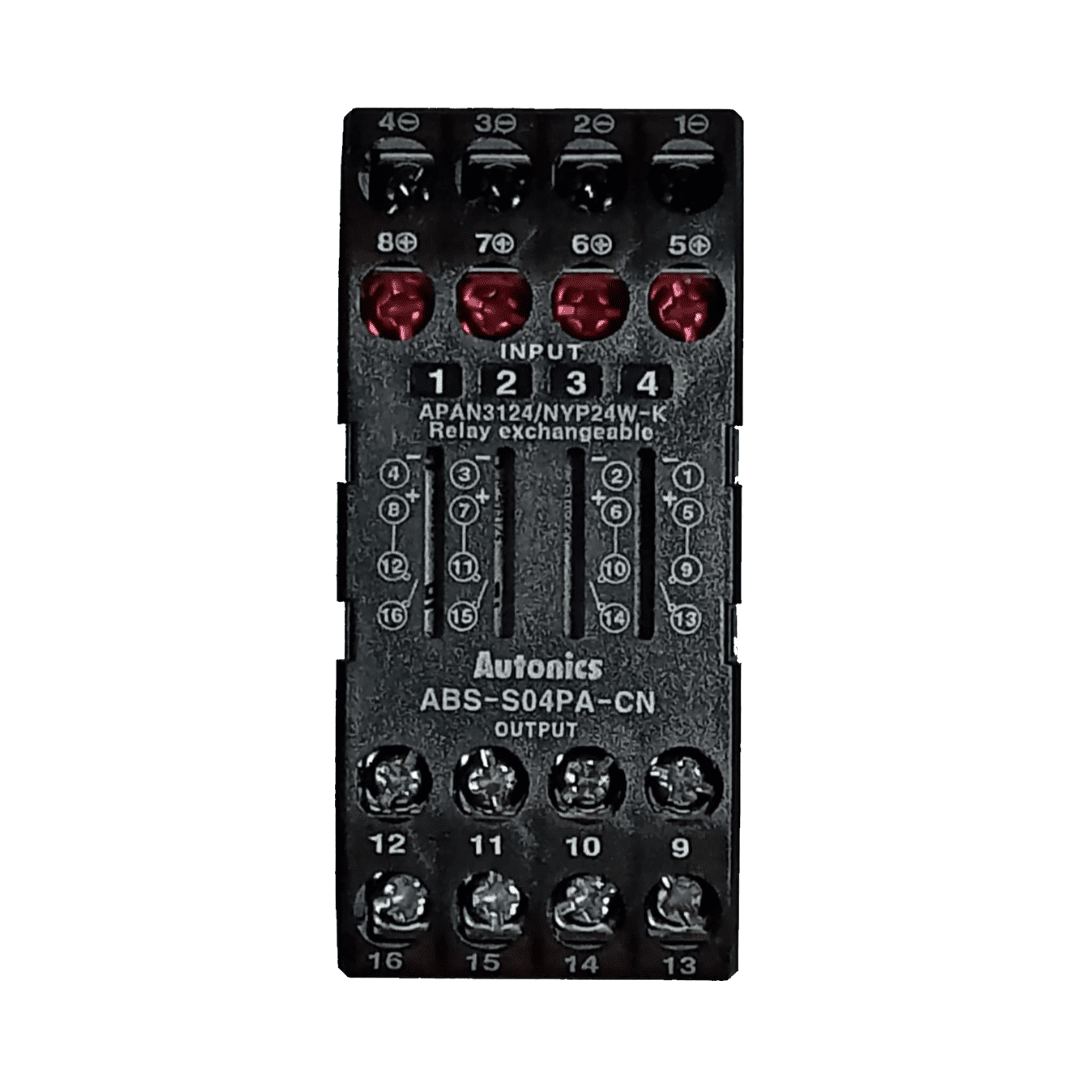

ABS-S04PA-CN Autonics Relay Terminal Block
