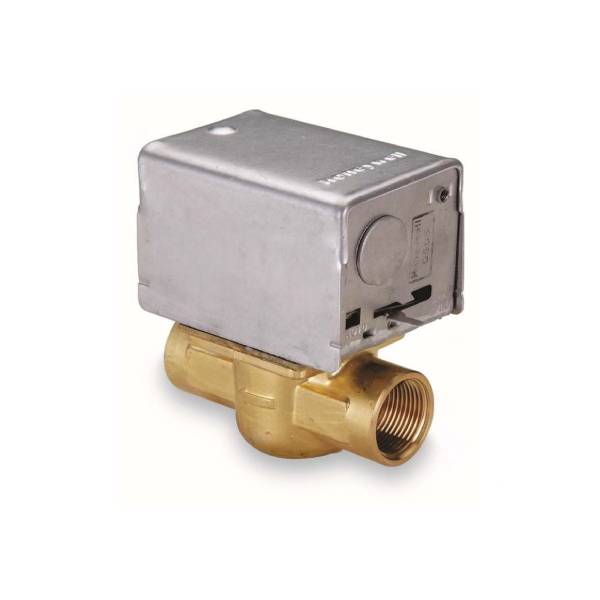

Name: V4043C1362B Honeywell FCU Valve
SKU: 67568
Price: 7027.00 INR
Availability: OutOfStock

V4043C1362B Honeywell FCU Valve

Available on order

₹7,027.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	V4043C1362B
Static Pressure Rating	PN16 (232psi)
Valve Action	Normally Closed
Timing	Open or close in 15 seconds maximum
Temperature ratings	Maximum Fluid Temperature: 116°C Minimum Fluid Temperature: 5°C Ambient Temperature:50°C
Approvals	Underwriters Laboratories Inc. Lis
Ways	2 ways
Voltage (Vac)	220
Frequency (Hz)	50
Size	1/2″
Pipe Connection (Internal Thread)	Flare
Flow Capacity Cv	3.5
Max.Close-Off Pressure (psi)	20

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

V4043C1362B Honeywell FCU Valve

FEATURES
• V4043 provides 2-position, straight-through control of water.
• Compact construction for easy installation.
• Manual opener for valve operation on power failure.
• Valve returns to automatic position when power is restored.
• Motor can be replaced by removing one screw, without disturbing the valve body or draining the system.
• Complete power-head may be removed or replaced without breaking the line connections or draining system.
• All models can be installed without disassembling the valve.

APPLICATION

Honeywell V4043C1354B FCU Valve consist of an actuator motor and valve
assembly for controlling the flow of hot or cold water.
