Name: E1000470 Honeywell Envitec Flow Sensor Spiroquant A+
SKU: 58583
Price: 1400.00 INR
Availability: OutOfStock

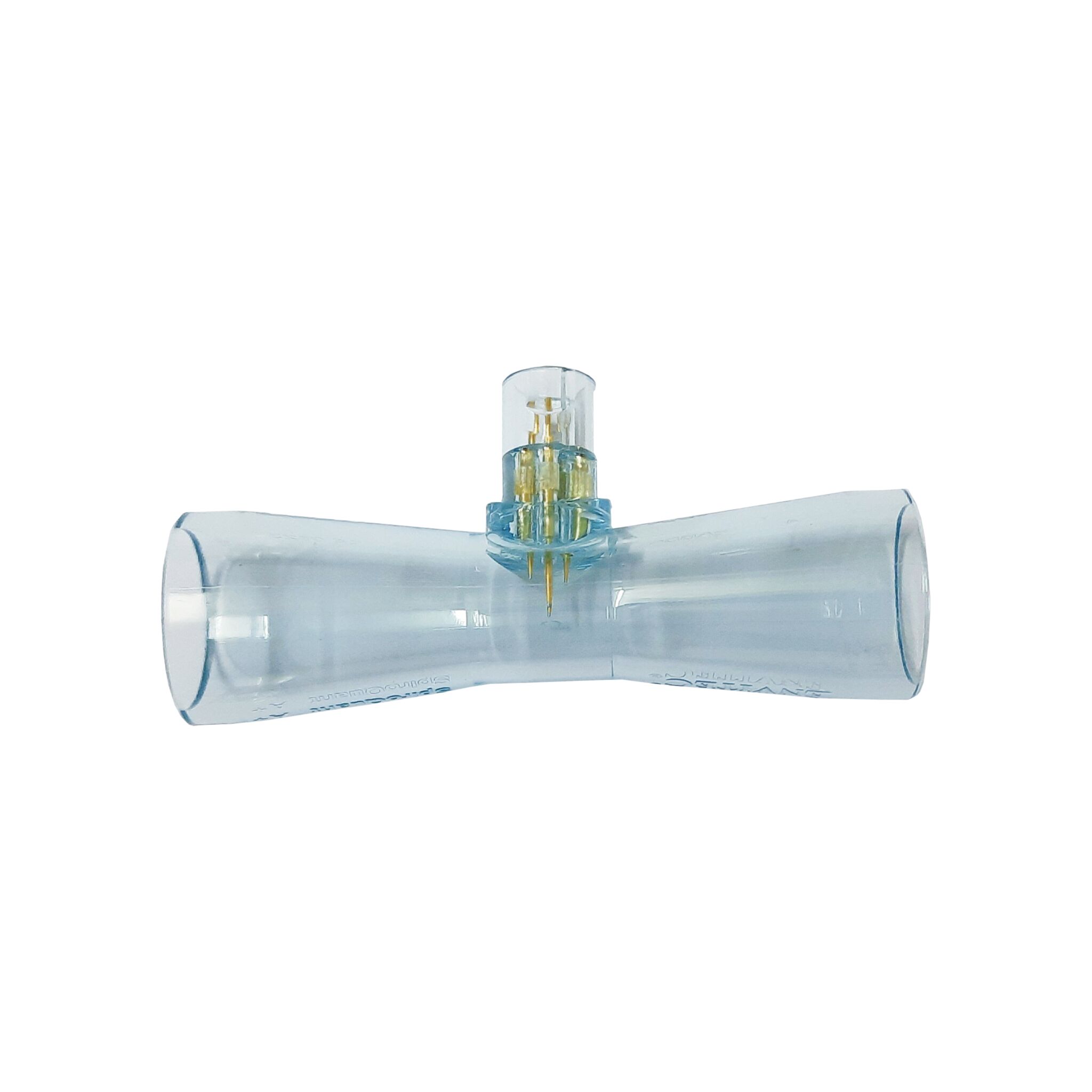

E1000470 Honeywell Envitec Flow Sensor Spiroquant A+

₹1,400.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell Envitec
Model No.	E1000470
Measuring principle	Constant temperature hot-wire anemometry
Sensor type	Disposable sensor for single patient use
Flow range	0 to 160 slpm (standard liters per minute)
Accuracy	± 7% from measured value between 0 … 10 l/min with flow module SpiroQuant MAX; ± 5% from measured value between 10 … 160 l/min with flow module SpiroQuant MAX; (± 8 % reading used in Dräger ventilators)
Flow resistance	< 2.5 mbar (added resistance)
Operating temperature	+15 °C … +40 °C
Operating time	Single patient use, applicable as long as a sensor calibration is successful
Storage temperature	20 °C … +70 °C
Storage ambient pressure	570 … 1200 hPa
Storage humidity	5 % … 95 % RH in original packaging
Material	Housing parts: MABS; Contact pins: gold-plated; Hot-wires: platin
Cross reference	Designed for EnviteC SpiroQuant MAX module; compatible with Dräger Spirolog® flow sensor
Cleaning / disinfection	Single patient use
Electrical connection	Gold plated 4 pin (compatible with Dräger Spirolog® sensor)
Weight	Approx. 10 g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

E1000470 Flow Sensor Spiroquant A+, flow sensor SpiroQuant A+ is a hot-wire sensor for measuring volume gas flow in anesthesia machines and ventilators. The flow sensor is not suitable for sterilization. For operation please refer to the instructions for use of the basic device to which this sensor is connected

Features:

• Proven – constant temperature hot-wire anemometry
• Fast response time
• High product quality
• RoHS conform
• Biocompatible components
• Short delivery times
• Technical support
• Made in Germany
• Certified quality management system according EN ISO 13485
