BXINDA4L-1A Honeywell Flameproof Limit Switch

Available on order

5,779.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
BRAND Honeywell
MODEL NO.  BXINDA4L-1A
TERMINATION TYPE 3/4″ – 14 NPT Conduit
CIRCUITRY 2NO 2NC Double Pole Double Throw. Snap Action, Double Break
APPROVALS ATEX Certified, CE Certified
ACTUATOR Side Rotary
OPERATING POSITION (O.P.) 68.6 mm ± 1 mm
[2.700 in ± 0.040 in]
SEALING IP67, NEMA 1,3,4,6,13
PRODUCT TYPE Weather-Sealed, Explosion-Proof Limit Switches/European Approvals
AMPERE RATING 10 A (Thermal)
SUPPLY VOLTAGE 600 Vac and 250 Vdc Maximum
HOUSING MATERIAL Aluminum Die-Cast
HOUSING TYPE BXIND Non Plug-in
SEALED Explosion-proof
OPERATING FORCE (O.F.) 0,45 N max. [4 in lb max.]
AGENCY APPROVALS AND STANDARDS II 2 GD, Ex d IIC T6 Gb, Ex tb IIIC T85° Db, SIRA 00ATEX 1037X
SERIES NAME BXIND Series
OPERATING TEMPERATURE RANGE -40 °C to 70 °C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

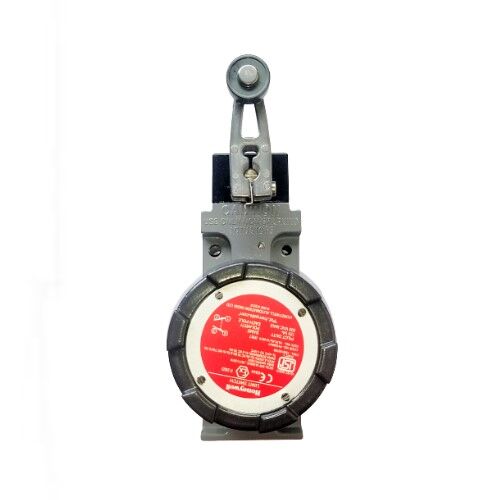

Honeywell BXINDA4L-1A Flameproof Limit Switch

Description

The BXINDA4L-1A  Flameproof Limit Switch BXIND is ideal for outdoor use or in adverse environments where a combination of explosion proof plus sealing requirements are needed. To comply with explosion-proof requirements the  Flameproof Limit Switch BXINDA4L-1A, BXIND has flame paths within the housing, which cool exploding gases below the ignition temperature before they reach explosive gases surrounding the housing. Flame paths on the BXIND are (1) an extended plunger between the switch cavity and head and (2) the cover housing threads on the front of the switch. These products are weather sealed for outdoor use and designed for explosive gas/dust environments. They may be interchanged with HDLS products by using an adapter plate. All heads are field adjustable at 90° increments. Side rotary BXIND products can be adjusted for clockwise and counterclockwise actuation. Honeywell explosion-proof switches are designed specifically for use in hazardous location applications. The BXIND enclosure is sealed for protection against corrosion, water, dust, and oil as defined in NEMA 1, 3, 4, 6, 7, 9 and 13 and IP67 as defined in IEC60529.

TYPICAL APPLICATIONS
• Control valves and actuators
• Offshore drilling
• Grain elevators
• Petrochemical plants
• Chemical plants
• Waste treatment
• Paint booths
• Mining conveyors
• Pulp and paper coating
• Hazardous waste handling
