₹3,600.00 Excluding GST
Available in Stock
Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell Envitec |

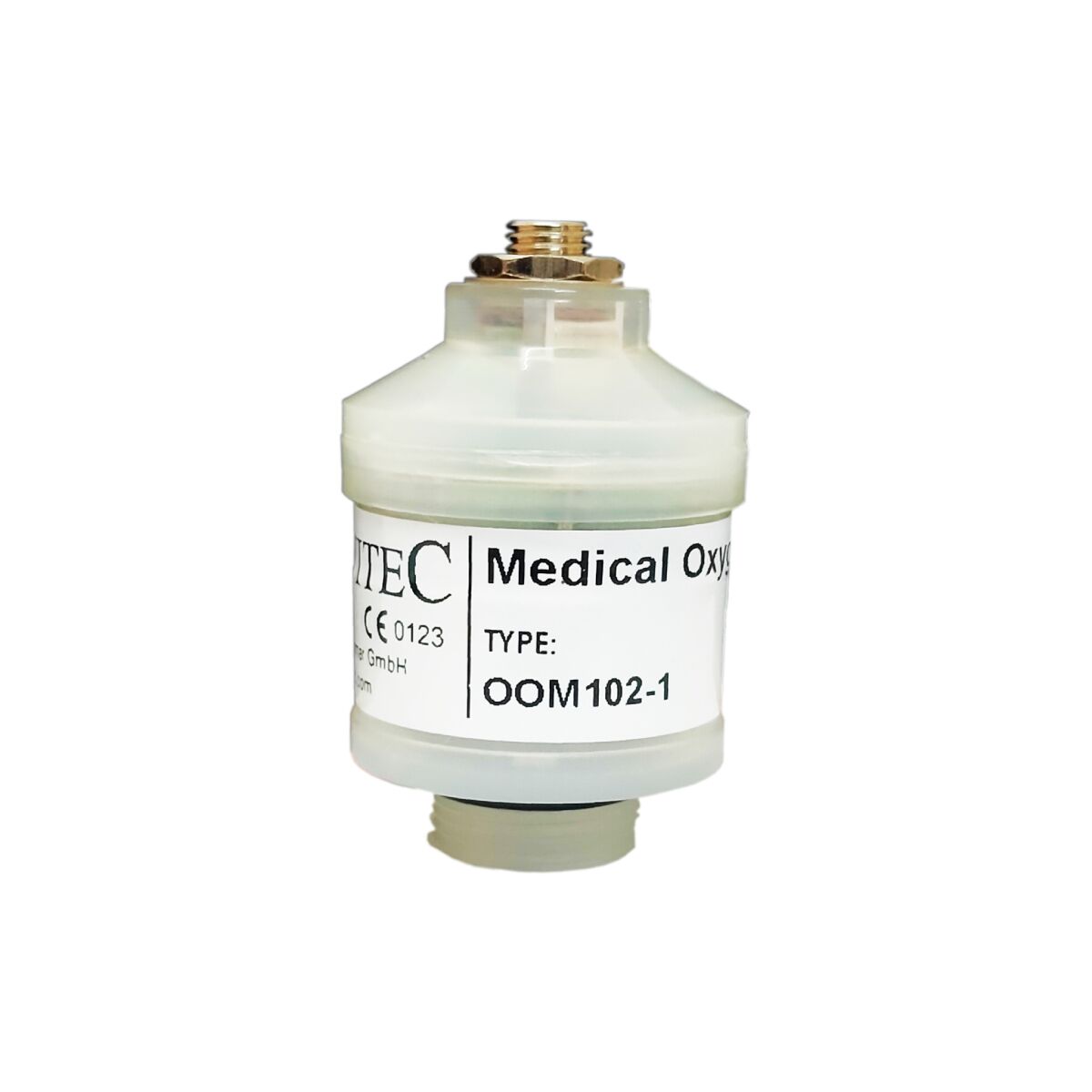

| Model No. | OOM102-1 |
| Measurement range | 0 % … 100 % oxygen (at atmospheric pressure) |
| Nominal sensor lifetime | ≥ 1 000 000 % volume oxygen hours |
| Output in ambient air | 9 mV … 14 mV |
| Electrical interface | 3.5 mm mono phone Jack |
| Accuracy | meets ISO 80601-2-55 requirements |
| Repeatability | < 1 % volume O2 at constant temperature and pressure |
| Linearity error | < 3 % relative |
| Response time | < 12 s to 90 % of final value |
| Zero offset voltage | < 200 µV in 100 % nitrogen, applied for 5 min |
| Cross interference | meets ISO 80601-2-55 requirements |
| Influence of humidity | -0.03 % rel. per % RH at 25 °C |
| Pressure range | 0.6 bar … 2 bar (ppO2 0 … 1250 mbar O2 |
| Influence of pressure | proportional to change in oxygen partial pressure |
| Operating temperature | 0 °C … +50 °C |
| Operating humidity | 0 % … 99 % RH non-condensing |
| Storage temperature | -20 °C … +50 °C |
| Recommended storage | +5 °C … +15 °C |
| Weight | approximately 28 grams |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
The EnviteC Medical Oxygen Sensors are intended as oxygen sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications:
Sensing device for oxygen in
• control device of oxygen concentrators
• medical ventilators
• anesthesia equipment
• incubators.
