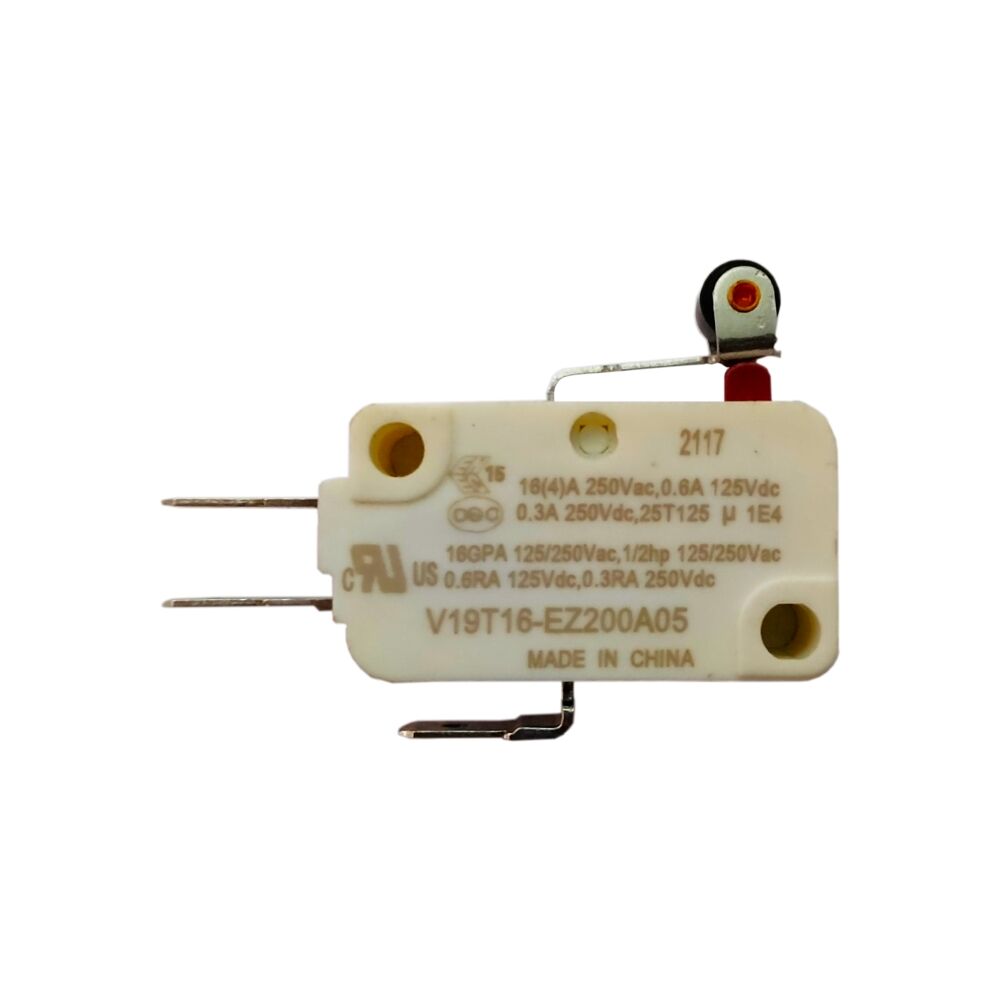

Name: V19T16-EZ200A05 Honeywell Micro Switch
SKU: 58857
Price: 175.00 INR
Availability: InStock

V19T16-EZ200A05 Honeywell Micro Switch

₹175.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	V19T16-EZ200A05
Type	V19 Series Micro Switch
Lever Type	Roller lever
Housing Type	Fully flat
Electrical Rating	16 GPA 125/250 Vac 1/2 HP 125/250 Vac 0.6 RA 125 Vdc; 0.3 RA 250 Vdc 10,000 cycles
Operating Temperature	-25°C to 125°C
Circuitry	SPDT
Lever Position	Far from pin plunger
Terminal Type	Quick connect 4,70 mm x 0,50 mm [0.187 in x 0.020 in]
Operating Force	200 gf; 1,96 N

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The V19T16-EZ200A05 Honeywell Micro Switch V19, Honeywell’s unsealed MICRO SWITCH family provides a cost conscious switch solution to assist in hitting overall system-level cost and design goals in high volume applications. The V19 switch provides a fully certified, reliable, and repeatable solution over the lifetime of the product. RAST 2.5, 5, and 7 termination styles available for automated manufacturing requirements (white goods).

APPLICATIONS:

Presence Detection- Ensures door latching and safe operation

Float Switch– On/off power to stop overflow conditions
Flow Switch– Enables safe and efficient water usage
Power Switch– Reliable system control for motors, pumps, fans
Operator Controls– Interface control for system auxiliary functions
