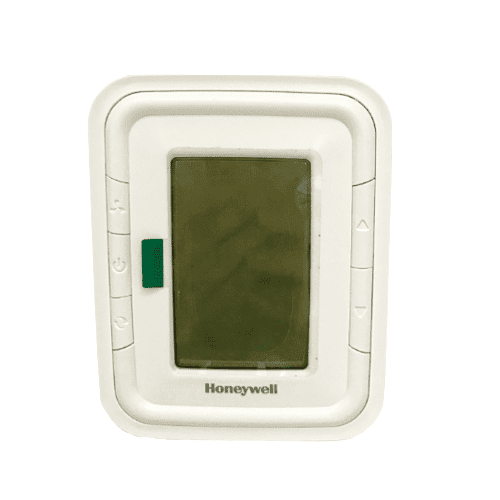

T6800V2WN Honeywell LCD Digital Thermostat

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model Number	T6800V2WN
Type	Halo Mars, 2-Pipe Vertical Digital Thermostat
Electrical ratings	110 (+/-10%) VAC, 220(+10%,-15%)VAC
Setpoint Range	10~32 Deg C
2-pipe/4-pipe	2
Operation temperature	-18~49 Deg. C
Accuracy	+/-1 deg. C at 21 deg. C
Protection Class	IP20
Mounting	Installed on 86×86mm junction box or US2×4 inch

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

T6800V2WN Honeywell Digital Thermostat , T6800 digital thermostats are designed for application of 3-speed fan and valves in 2-pipe fan coil system. Including: 2-pipe cool only/heat only/manual changeover between heat and cool Ventilation mode Manual or automatic 3-speed fan control Water valve control Fan speed can be selected to automatic or manual 3-speed control mode. In ventilation mode, fan only support manual speed control.

Features:

• Super modern appearance design, suitable for office, hotel and residential building
• Horizontal and vertical model available for variant application
• Slim design, direct installation on 86 size box
• Big LCD with English and icon display
• Easy to install and set-up
• Selectable room temperature or setpoint display
• Manual or automatic fan speed selection by button press
• Remote temperature sensor
• Energy saving mode activation by button press or dry contact (key card)
• Cycle per Hour (CPH) function
• Adjustment of display room temperature
• Temperature unit either o C or o F
• User setting can be kept when power off
• Freezing protection function available
• Lock or unlock keys or part of keys in Installer Set-up
• Heat and cool setpoint limitation for energy saving
