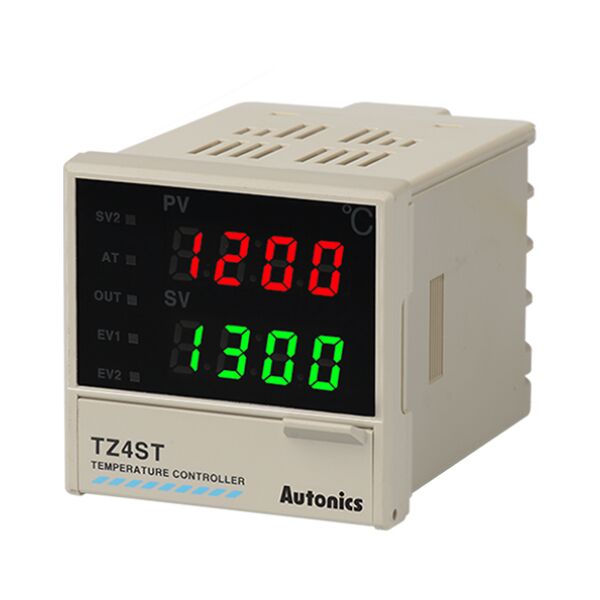

TZ4ST-14R Autonics Temperature Controller

Available on order

Product Details:

Product	Description
Brand	Autonics
Model No.	TZ4ST-14R
Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PIDF, PIDS control
Input specification	Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT) RTD: DPt100?, JPt100? Analog: 1-5VDC, 0-10VDC, DC4-20mA
Sampling cycle	500ms
Control output	Current output(DC4-20mA)
Option output	Event 1
Power supply	100-240VAC~ 50/60Hz
Display accuracy	F.S ± 0.3% or 3?, select the higher one
Alarm output hysteresis	1 to 100? (0.1 to 100.0?) variable
Proportional band	0.0 to 100.0%
Integral time	0 to 3,600 sec
Derivative time	0 to 3,600 sec
Control period	1 to 120 sec
LBA setting	1 to 999 sec
Ramp setting	Ramp Up, Ramp Down: 1 to 99 min each
Environment Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 218g(approx. 162g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

TZ4ST-14R Autonics Temperature Controller

FEATURES

Dual PID auto tuning function:
High-speed response of PID control to reach to the
desired value fast, low-speed of response of PID control
to minimize the overshoot even though response is a
little bit slow.
High display accuracy: ±0.3% (by F.S. value of each input)
2-Steps auto tuning control function
Multi-input function
(13 kinds of multi-input selection function):
Temperature sensor, voltage and current selection
function.
Various sub output function:
Includes in LBA, SBA, 7kinds of alarm output and
4 kinds of alarm option function, PV transmission
output(DC4-20mA), RS485 communication output
Display the decimal point for analog input
