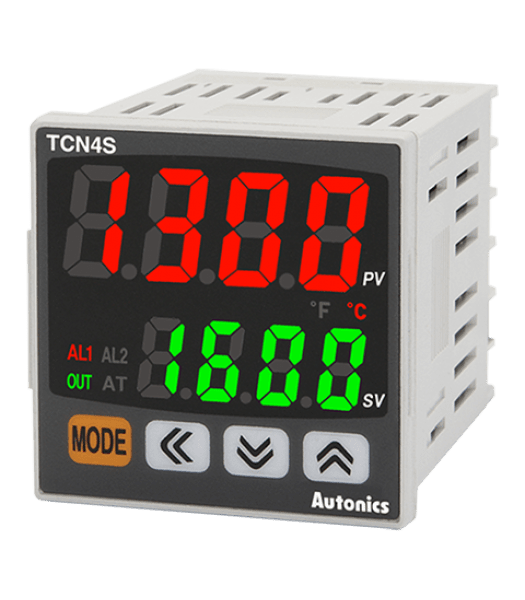

Name: TCN4S-24R Autonics Temperature Controller
SKU: 61960
Price: 3118.00 INR
Availability: InStock

TCN4S-24R Autonics Temperature Controller

₹3,118.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model no	TCN4S-24R
Size	S DIN W48×H48mm
Control output	R: Relay contact output + SSRP output (AC Power) Relay contact output + SSR output (AC/DC Power)
Power supply	2 24VAC 50/60Hz, 24-48 VDC 4 100-240VAC 50/60Hz
Power consumption	AC Power Max. 5VA(100-240VAC 50/60Hz) AC/DC Power Max. 5VA(24VAC 50/60Hz), Max.3W( 24-48 VDC)
Sampling period	100ms
Display type	24-48 VDC
Control type	ON/OFF, P, PI, PD, PID Control
Hysteresis	1 to 100 (0.1 to 50.0) ℃/℉
Proportional band (P)	0.1 to 999.9 ℃/℉
Mechanical Life	OUT: Over 5,000,000 times, AL 1/2: Over 5,000,000 times
Electrical Life	OUT: Over 200,000 times (250VAC 3A resistive load) AL 1/2: Over 300,000 times (250VAC 1A resistive load)
Dielectric strength	AC Power 2,000VAC 50/60Hz 1min.(between input terminal and power terminal) AC/DC Power 1,000VAC 50/60Hz 1 min.(between input terminal and power terminal)
Vibration	0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Insulation resistance	≥ 100 MΩ (500 VDCmegger)
Memory retention	≈ 10 years (non-volatile semiconductor memory type)
Ambient temperature	-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Available in Stock

Description

TCN4S-24R Autonics Temperature Controller

Features
Economical dual display type, PID control
● Realizes ideal temp. controlling with newly developed PID control algorithm and 100ms high speed sampling
● Built-in relay output or SSR output selectable : Enables to phase control and cycle control with SSR drive output(SSRP function)
● Dramatically increased visibility using wide display part
● Mounting space saving with compact design: Approx. 38% reduced size compared with existing model(depth-based)
