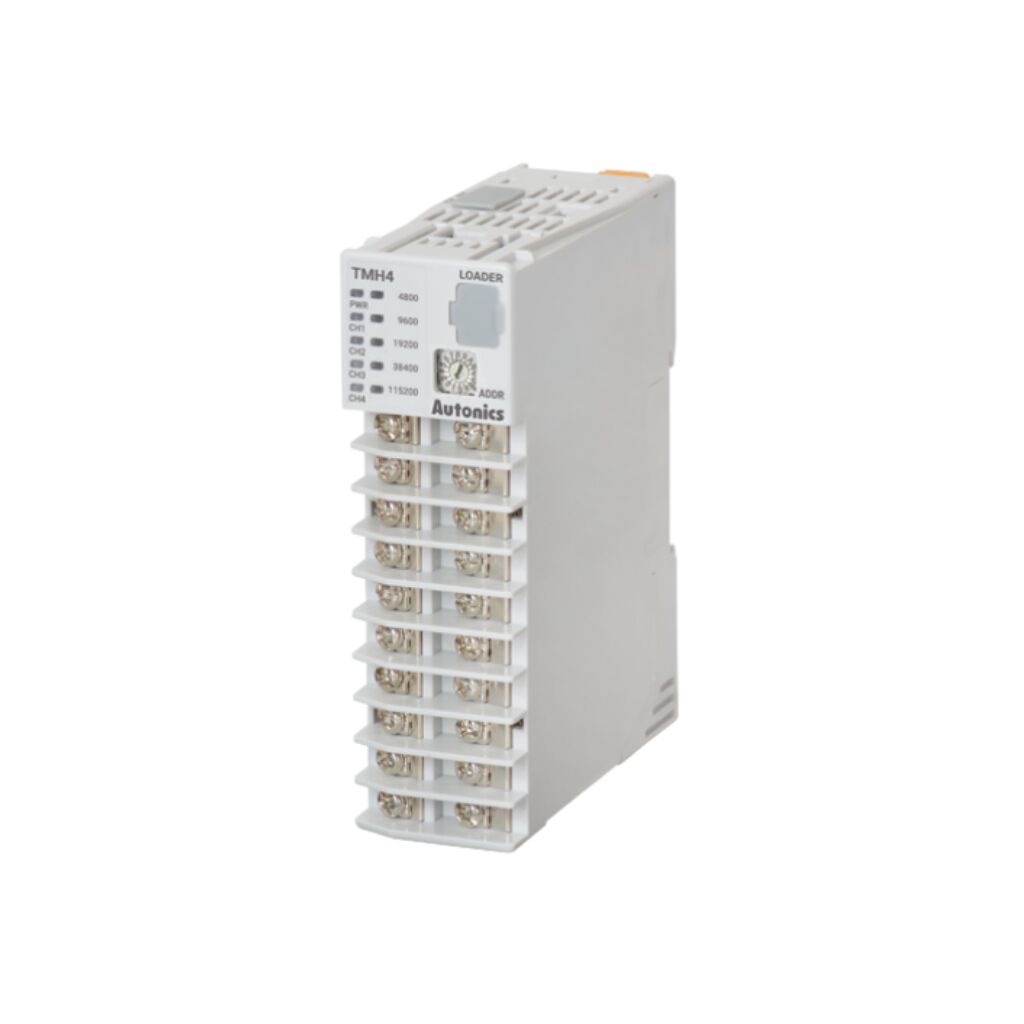

TMH4-N2CB Autonics Temperature Controller

Available on order

48,609.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model no TMH4-N2CB
Number of input channels 4-channel
Power supply 24VDC
Power consumption Max. 5W
Option output_Alarm 250VAC~ 3A 1a
Control method ON/OFF control, P, PI, PD, PID control
Control output_Relay 250VAC~ 3A 1a
Control output_SSR Max. 12VDC, ±3V 20mA
Environment_Ambient temperature -10 to 50 Deg C
Environment_Ambient humidity 35 to 85% RH
Weight_Basic module Approx. 250.4g (approx. 177.3g)
Protection structure IP20(IEC standard)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics TK4S-B4CN Temperature Controller

Description

TMH4-N2CB  Autonics Temperature Controller

Features :

  1. Easy maintenance with separated body/base parts
  2. No communication and power supply for expansion modules required using module connectors: Up to 32 modules
  3. PC parameter setting via PC (USB cable and RS485 communication): Supports comprehensive device management program (DAQMaster)
  4. Communication converter, sold separately: SCM-US(USB/Serial converter), SCM-381(RS232C/RS485 converter), SCM-US48I(USB/RS485 converter), SCM-WF48(Wi-Fi/RS485
  5. USB wireless communication converter), EXT-US (converter cable)
