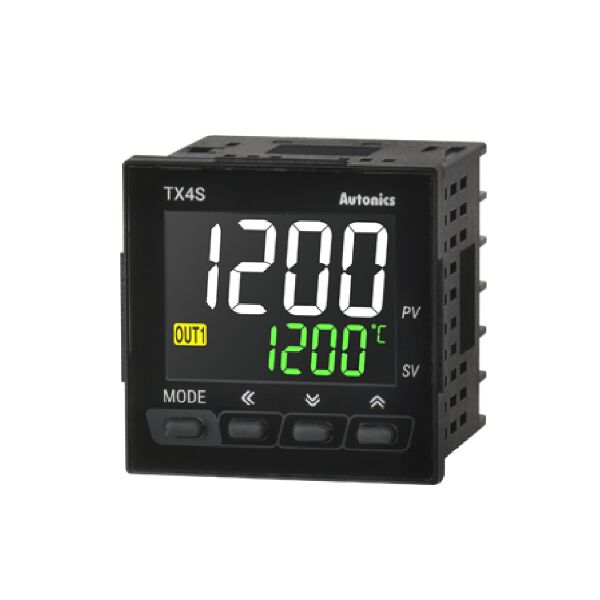

Name: TX4S-14C Autonics Temperature Controller
SKU: 64716
Price: 3960.00 INR
Availability: OutOfStock

TX4S-14C Autonics Temperature Controller

Available on order

₹3,960.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model No.	TX4S-14C
Display method	4-digit 11-segment LCD
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100?, Cu50â„ƒ
Sampling cycle	50ms
Control output	Current (DC0/4-20mA) or SSR drive (13VDC)[ON/OFF]
Option output	Alarm 1
Power supply	100-240VAC~ 50/60Hz
Protection structure	IP50(front panel)
Approval	CE
Display accuracy RTD	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy Thermocouple	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Hysteresis(adjustable sensitivity)	1 to 100â„ƒ/â„‰(0.1 to 50.0â„ƒ/â„‰) variable
Proportional band	0.1 to 999.9?/?
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation (mark: , dielectric strength between primary circuit and secondary circuit: 3kV)
Weight	Approx. 146.1g(approx. 86.7g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

TX4S-14C Autonics Temperature Controller

Features

Super high-speed sampling with 50ms
Improved visibility with LCD display
Communication function supported: RS485 (Modbus RTU)
Convenient parameter setting (RS485 communication)
: Free download the comprehensive device management program
(DAQMaster)
SSR drive output / Current output selectable
SSRP output (standard/phase/cycle control selectable
Mounting space saving with compact design
: downsized by approx. 30% in depth compared with same size of
other Series (panel back length: 60mm)
