Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | TC4S Series |
| Size | S: DIN W 48 × H 48 mm |
| Control output | N: Indicator – without control output R: Relay + SSR drive |
| Integral time (I) | 0 to 9,999 sec |
| Power consumption | AC: ≤ 5 VA, DC: ≤ 3 W or ≤ 5 VA |
| Sampling period | 100 ms |
| Display type | 7 Segment (red, green, yellow), LED type |
| Control type | ON/OFF, P, PI, PD, PID Control |
| Hysteresis | 1 to 100 (0.1 to 50.0) ℃/℉ |
| Proportional band (P) | 0.1 to 999.9 ℃/℉ |
| Mechanical Life | OUT1/2, AL1/2: ≥ 5,000,000 operations |
| Electrical Life | OUT1/2: ≥ 200,000 operations (load resistance: 250 VACᜠ 3A) AL1/2: ≥ 300,000 operations (load resistance: 250 VACᜠ 1 A ) |
| Memory retention | ≈ 10 years (non-volatile semiconductor memory type) |
| Vibration | 0.75 mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Insulation resistance | ≥ 100 MΩ (500 VDCᜡ megger) |
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) |
| Ambient temperature | -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

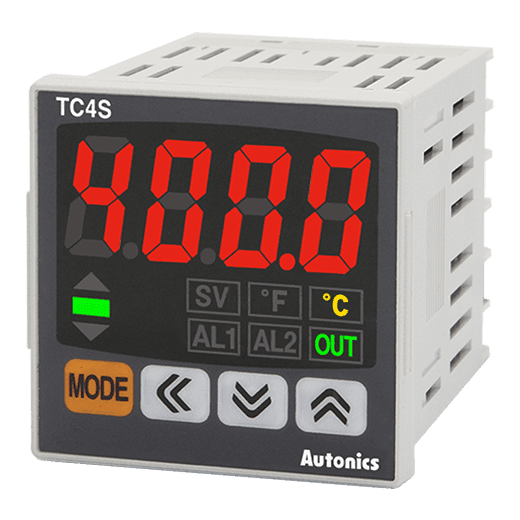

TC4S Series Autonics Temperature Controller
FEATURES
• Single digital display (switch between PV and SV)
• 100ms high-speed sampling rate and ±0.5% display accuracy
• Switch between relay output and SSR drive output (patent) *
• SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
• Compact design with large display panels for easier reading
• Connector plug types offer easier wiring and maintenance (TCN4S-◻ -P)
