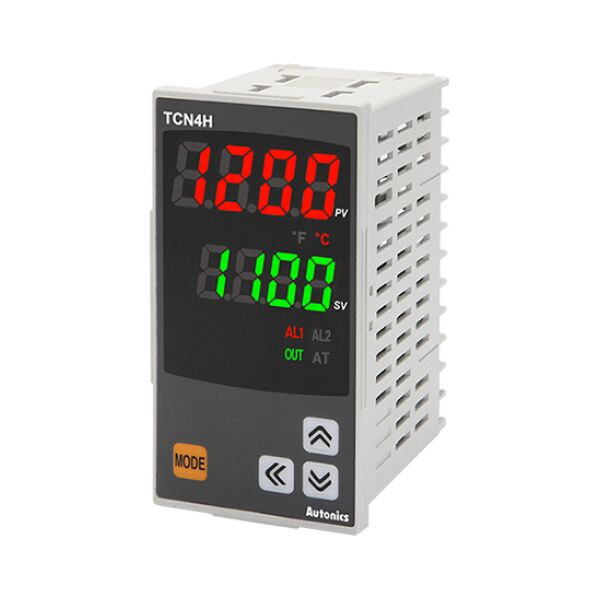

Name: TCN4H-24R Autonics Temperature Controller
SKU: 64633
Price: 4702.00 INR
Availability: OutOfStock

TCN4H-24R Autonics Temperature Controller

Available on order

₹4,702.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model no	TCN4H-24R
Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100?, Cu50â„ƒ
Sampling cycle	100ms
Control output	Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
Option output	Alarm 1/2
Power supply	100-240VAC~ 50/60Hz
Approval	CE
Display accuracy RTD	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy Thermocouple	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity)	1 to 100â„ƒ/â„‰(0.1 to 50.0â„ƒ/â„‰) variable
Proportional band	0.1 to 999.9?/?
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Environment Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight	Approx. 194g(approx. 124g)
Manual reset	0.0 to 100.0%

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

TCN4H-24R Autonics Temperature Controller

Features

●Economical dual display type, PID control
●Realizes ideal temp. controlling with newly developed PID control algorithm and 100ms high speed sampling
● Built-in relay output or SSR output selectable : Enables to phase control and cycle control with SSR drive output(SSRP function)
● Dramatically increased visibility using wide display part
● Mounting space saving with compact design: Approx. 38% reduced size compared with existing model(depth-based)
