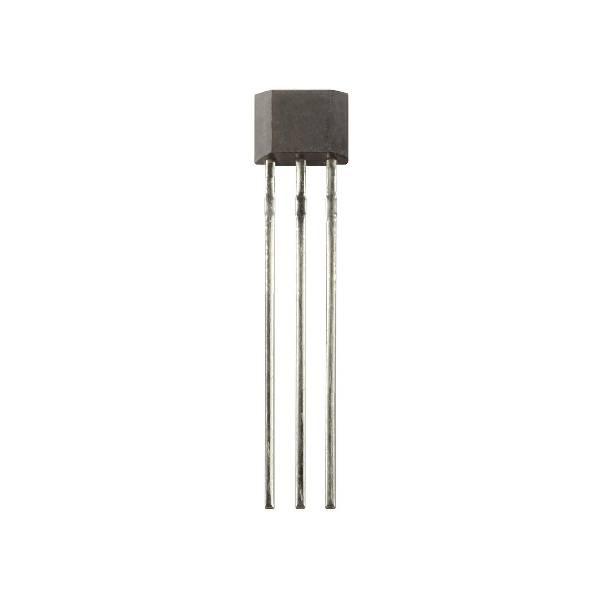

SS40AF Honeywell Hall Effect Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	SS40AF
Supply current	10.0 mA
Output current	20.0 mA
Output leakage current	10.0 uA
Operating temperature	125 [257] °C [°F]
Storage temperature	155 [311] °C [°F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SS40AF Honeywell Hall Effect Sensor

DESCRIPTION
These small and versatile digital Hall-effect devices are
operated by the magnetic field from a permanent magnet or
an electromagnet, and are designed to respond to alternating
North and South poles. The built-in regulator provides
enhanced stability of operation from over a 4.5 Vdc to 24
Vdc supply voltage range, and internal circuitry is designed
to prevent sensor damage in case the supply voltage polarity
is accidentally reversed. The open-collector sinking output
voltage is easily interfaced with a wide variety of electronic
circuits. Both products are designed for high volume
applications. The SS40F is factory tested at 25°C [77°F] and
the SS40AF is factory tested at both 25°C [77°F] and 125°C
[257°F]. These products are available in a flat TO-92-style
package with straight leads in bulk packaging.
