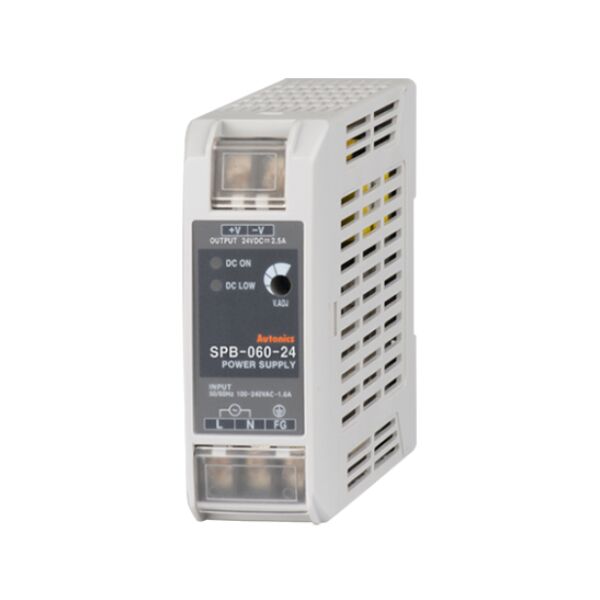

SPB-060-24 Autonics Power Supply

Available on order

3,206.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. SPB-060-24
Output power 60W
Input Voltage 100-240VAC~ 50/60Hz
Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
Output Voltage 24VDC
Output Current 2.5A
Mounting type DIN Rail
Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
Approval CE
Input Frequency 50/60Hz
Input Efficiency 100VAC~ 0.84
Input Efficiency 240VAC~ 0.86
Input Current consumption 100VAC~ 1.21A
Input Current consumption 240VAC~ 0.65A
Output type Voltage adjustment range Max. ±5%
Output type Input fluctuation ratio Max. ±0.5%
Output type Load fluctuation ratio Max. ±1%
Output type Ripple & Ripple noise Max. ±1%
Protection structure IP20(IEC standard)
Environment Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40?)
Environment Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
Weight Approx. 347g(approx. 274g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics PR12-4DN Proximity Sensor

Description

SPB-060-24 Autonics Power Supply

Features

  • DIN rail type and fixing screw type mountings
  • Built-in overcurrent protection, output short circuit
    protection, overheat and over voltage limit protection
    circuit (SPB-120)
  • Built-in power factor correction circuit(SPB-120/240)
  • Low-voltage LED indicator
  • Slim-type size (SPB-060:W36xH100xL110mm)
  • Minimizes noise and ripple
  • Improves user safety with terminal cover
  • Designed to minimize heat
  • Output power: 60W, 120W, 240W
  • Output voltage: 12VDC, 24VDC, 48VDC
